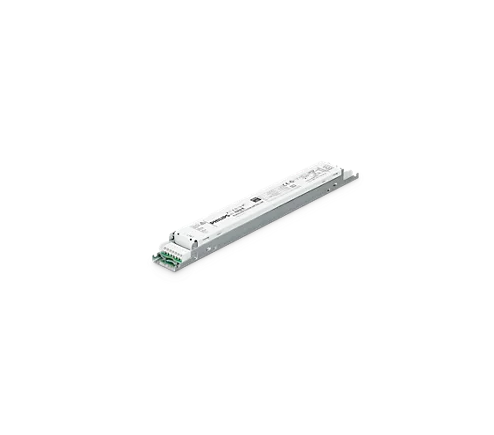

Xitanium 36W 0.12-0.4A 115V 1-10V 230V Sale

$26.21

25 people are viewing this right now
15 products sold in last 14 hours
Selling fast! Over 18 people have this in their carts
  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping & Returns : On all orders over $200
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout

Specifications

General information

Protection class IEC
Safety class I
Constant light output
No
Nominal Lifetime (Nom)
50000 h
Number of Products on MCB (16A Type-C) (Max)
34 piece unit
Operating and electrical

Input Frequency
50 to 60 Hz
Mains voltage operation (DC)
168-275 V
Total Harmonic Distortion IEC (Max)
20 %
Output Current Ripple (Max)
4 %
Maximum Efficiency at Full Load
88.7 %
Output Current (Max)
400 mA
Output Current Tolerance (Max)
5 %
Mains voltage performance (DC)
186-250 V
Standby Power Consumption (Max)
0 W
Power Factor (Min)
0.9
Open Circuit Voltage (DC) (Max)
170 V
Protection Level Up (L-N) at 5 kA (Max)
1 kV
Protection Level Up (LN-Earth) at 5 kA (Max)
2 kV
Input current (AC)
0.19 mA
Input current (DC)
0.19
Inrush Current Peak (Max)
16 A
Output Power (Max)
36 W
Default output current
120 mA
Inrush Current Width to 50% of Peak
255 µs
Power Factor 100% Load (Max)
0.9
Energy Metering
No
Constant Current (CC)
True
Constant Voltage (CV)
False
Diagnostics
False
Output Power (Min)
10 W
Output Current (Min)
120 mA
Output Voltage (Max)
115 V
Output Voltage (Min)
50 V
Wiring

Connector Type Input Terminals
Wago 744
Hot Wiring
no
Connector Type Output Terminals
Wago 744
Output Wire Cross Section (Max)
1.5 mm²
Output Wire Cross Section (Min)
0.5 mm²
Cable Length From Device to Lamp
4 m
Input Wire Gauge
16-20
Input wire strip length
8 mm to 9 mm
Output wire strip length
8 mm to 9 mm
Input Wire Cross Section (Max)
1.5 mm²
Input Wire Cross Section (Min)
0.5 mm²
System characteristics

Central DC Operation
Yes
YellowDot ready
No
Temperature

T-Ambient (Max)
50 °C
T-Ambient (Min)
-20 °C
T-Case Lifetime (Max)
75 °C
T-Case Maximum (Max)
75 °C
Module Temperature Protection
no
Maximum case temperature (in case of failure)
110 °C
Controls and dimming

Dimmable
1-10V
Dimming Range
100-10 %
D4i compliant
No
DynaDimmer
No
Mechanical and housing

Product Length
280 mm
Housing
Office 280x30x21 7p7p SideM
Housing Dimensions
280 x 30 x 21
Overall length
280 mm
Overall width
30 mm
Overall height
21 mm
Approval and application

IP Classification
IP20  [ Finger-protected]
Isolation Classification
No
Short Circuit Protection
Protected
Over Power Protection
Protected
Open Circuit Protection
Protected
Approval Marks

CCC certificate

CE marking

ENEC certificate

RCM compliance

REACH compliance

RoHS compliance
Corridor Mode
True
Output Current Set Options
LEDset
Application conditions

Ambient temperature range
-20 °C to 50 °C

Product data

Full product code
871869646970500
Order product name
Xitanium 36W 0.12-0.4A 115V 1-10V 230V
EAN UPC – Product
8718696469705
Order code
929000953606
Numerator – Quantity Per Pack
1
Numerator – Packs per outer box
24
Material Nr. (12NC)
929000953606
Net Weight (Piece)
0.195 kg
