Varilight Low Voltage Dimmable Transformers Suitable for LED and Halogen For Cheap

VARILIGHT Dimmable Electronic Transformers

• Soft start gently brings lights to full brightness when you switch on and extend lamp life
• Auto-resetting overload protection
• Auto-resetting over-temperature
• Short circuit protection
• No minimum

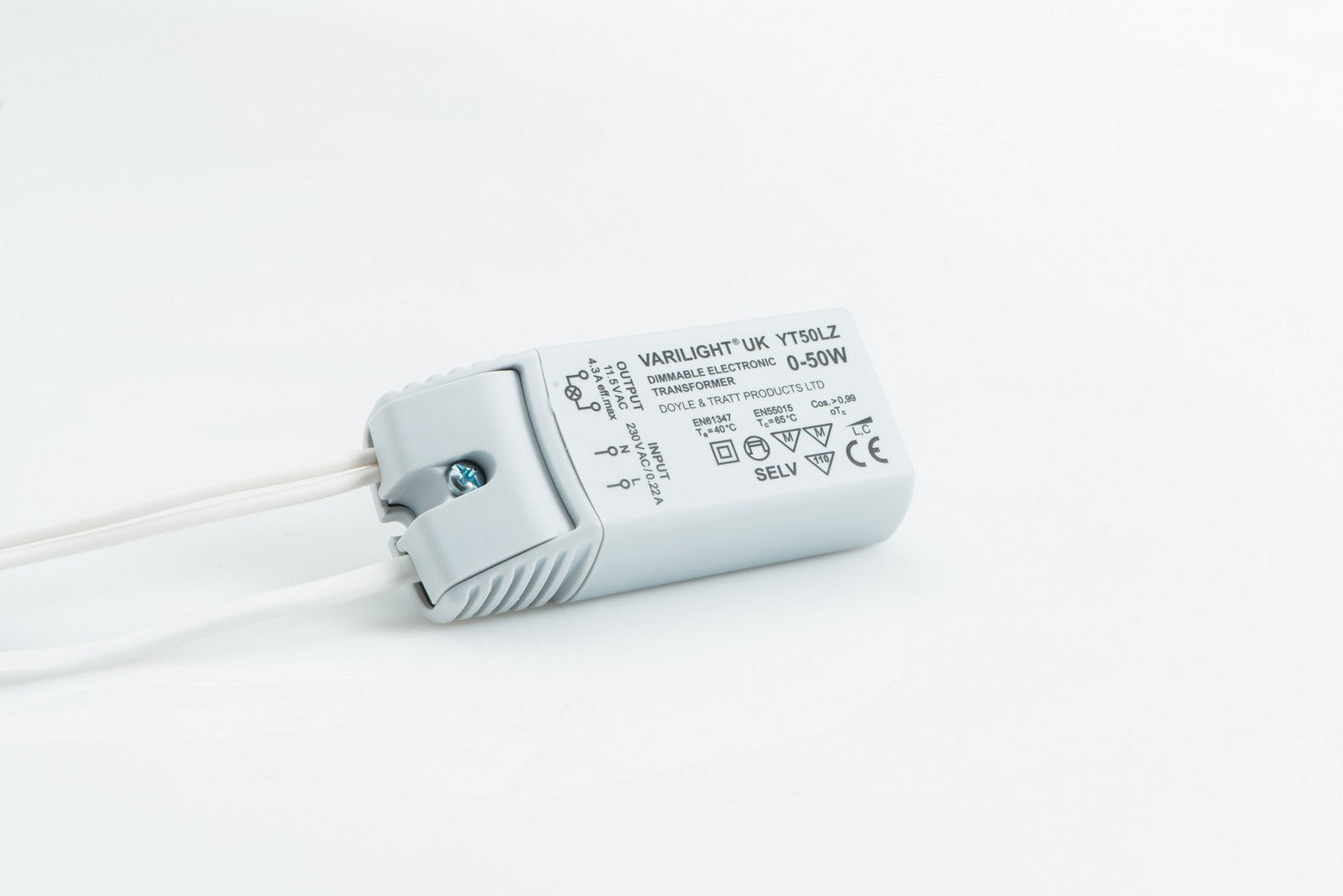

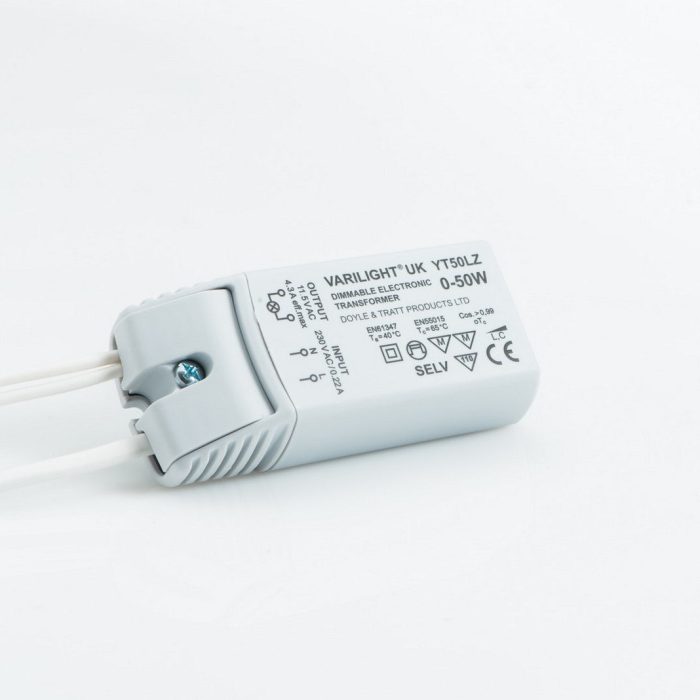

• Choose YT50LZ for 12V a.c. LEDs (max. 25W)
• Choose YT40DC12 for 12V d.c. LEDs (max 40W for LED strip, 30W for LED lamps)
•


  Technical Data		YT50LZ		YT70LZ		YT105Z		YT150Z		YT210Z		YT40DC12
  Input voltage		230V a.c. + -10% 50Hz		230V a.c. + -10% 50Hz		230V a.c. + -10% 50Hz		230V a.c. + -10% 50Hz		230V a.c. + -10% 50Hz		230V a.c. + -10% 50Hz
  Nominal input current		0.22A		0.32A		0.46A		0.65A		0.93A		0.2A
  Output voltage		11.5V a.c.		11.5V a.c.		11.5V a.c.		11.5V a.c.		11.5V a.c.		11.5V d.c.
  Output power range		0-50W		0-70W		0-105W		0-150W		0-210W		0-40W
  Nominal output current		4.3A		6.0A		9.1A		13A		18.2A		3.5A
  Power factor		0.99		0.99		0.99		0.99		0.99		>0.9
  Ambient temperature range		0-40C		0-40C		0-40C		0-40C		0-40C		0-40C
  IP Protection		IP20		IP20		IP20		IP20		IP20		IP20
  Weight		100g		100g		125g		212g		225g		180g
  Input terminals		2 leads		2 leads		2 terminals		4 terminals		4 terminals		2 leads
  Output terminals		2 leads		2 leads		4 terminals		6 terminals		6 terminals		2 leads
  Case type (dimensions below)		A		A		B		C		C		D
  LED Compatible

  Wattage Range	0-50w With Leads, 0-70w With Terminals, 0-70W with Leads, 0-105W With Terminals, 0-150W With Terminals, 0-210W With Terminals, 240 V AC -12V DC Dimmable convertor for led strip, 12v AC to 12V DC dimmable convertor ( for use with dimmable LV transformers)
