Detailed product description

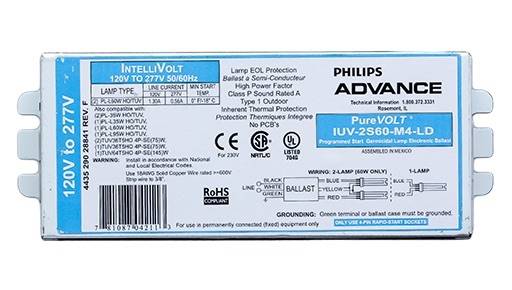

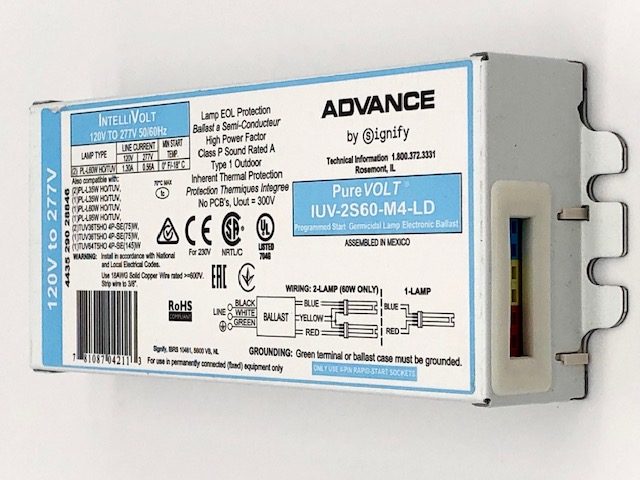

Advance Pure Volt IUV-2S60-M4-L

The microprocessor controlled Advance PureVOLT electronic ballasts are specifically designed to operate a variety of germicidal lamps. PureVOLT ballasts operate the following low pressure mercury germicidal UV lamps:

High Output

Twin Tube: (1 or 2) HO 35W or 60W; (1) HO 95W

Linear: (1 or 2) 36T5HO (75W); (1) 64T5HO (145W)

Standard Output

Twin Tube: (1 or 2) TUV 18 PL-L or 36 PL-L

The Advance PureVOLT ballasts for UV lamps offer exclusive features such as IntelliVolt® technology (allowing the ballast to operate at any input voltage from 120 to 277 volts, 50 60 Hz), dual entry, color-coded connectors and lamp EOL protection.
A powerful pair, the combination of germicidal lamps with an Advance PureVOLT ballast provides the appropriate level of UV-C energy to stop the spread of microorganisms, airborne contaminants, and pathogens, reducing the threat of illness and
helping to ensure a safer environment for building occupants.

Other options

TUV 55W HO
TUV 75W HO
TL 60W 10
TL 80W 10

Product parameters

Drivers for TUV
Manufacturer		Philips
EAN		8727900783995
Product number		914499999001
Source type		IUV-2S60-M4-LD
Number of sources		1 or 2
Type		UIV-2S60-M4-LD
GPC code		914499999001
EOC code		872790078399500
Pieces in box		20ks
Voltage		120-277 V
Current		0,56 – 1,3 A
Length		175 mm
Height		34 mm
Width		77 mm
IP protection		IP20
Dimmable		No
