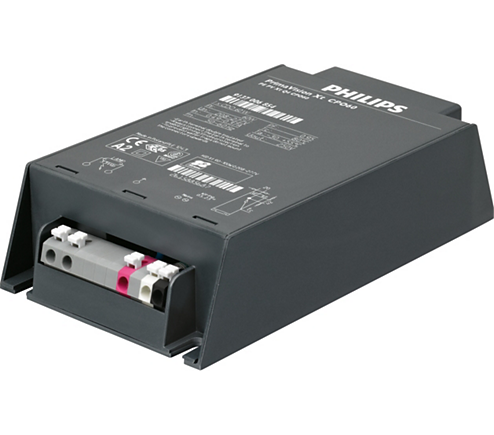

Philips HID-PV Xt 140 CPO Q 208-277V Discount

$69.55

20 people are viewing this right now
5 products sold in last 14 hours
Selling fast! Over 13 people have this in their carts
  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping & Returns : On all orders over $200
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout

Specifications

General information

Lamp Type
CPO
Number of Lamps
1 piece unit
Suitable For Outdoor Use
Yes
Number of Products on MCB (16A Type B) (Nom)
5
Default Lamp Selected
CPO140
Automatic Restart
Yes
Operating and electrical

Input Voltage
208-240-277 V
Input Frequency
50 to 60 Hz
Minimum Mains Voltage Operation (Min)
172 V
Operating Frequency (Nom)
0.40 kHz
Power Factor 100% Load (Nom)
0.99
Ignition Voltage (Max)
5 kV
Ignition Switch-Off Time (Nom)
20 min
Mains Voltage Performance (AC)
188-305V
Mains Voltage Safety (AC)
160-305V
Earth Leakage Current (Max)
0.7 mA
Output Peak Voltage (Max)
250 V
Inrush Current Width
0.47 ms
Lamp Power Tolerance
-3% +3%
Input Current (Nom)
0.75 A
Inrush Current Peak (Max)
52 A
Efficiency at full load [%]
91.06 %
Wiring

Cable Capacity Output Wires Mutual (Nom)
1000 pF
Cable Length From Device to Lamp
10 m
Wire Striplength
10.0-11.0 mm
Ballast Contact Wire Cross Section
0.50-2.50 mm²
Connector Type
WAGO series 804
System characteristics

Rated Ballast-Lamp Power
140 W
Rated Lamp Power on CPO
140 W
System Power on CPO
153 W
Lamp Power on CPO
140 W
Power Loss on CPO
13 W
Power Loss on CPO While Dimming
7 W
Temperature

T-Ambient (Max)
55 °C
T-Ambient (Min)
-30 °C
T-Storage (Max)
55 °C
T-Storage (Min)
-30 °C
T-Case Lifetime (Nom)
80 °C
T-Case Switch Off (Min)
92 °C
Controls and dimming

Programmable Lamp Settings
None
Pre-Set Integrated Controls
None
Programmable Dimming Options
None
Control Input Protection
Yes (Basic insulation)
Regulating Level
–
Mechanical and housing

Housing
Q

Approval and application

Surge Protection (Common Differential)
EN61547 (L-L 2kV, L-G 4kV), 10 kV TIL
IP Classification Luminaire
34
Active Temperature Protection
Yes
EMI 9 kHz … 300 MHz
CISPR 15 ed 7.2
EMI 30 MHz … 1000 MHz
CISPR15 Edition 7.2
Safety Standard
IEC 607, 609, 926, 928  [ No Standard for HID Lamp drivers exists. Requirements in these standards to be used if considered relevant for the product.]
Quality Standard
ISO 9000:2000
Environmental Standard
ISO 14001
Harmonic Current Emission Standard
IEC 61000-3-2
Vibration Standard
IEC 68-2-6 Fc (10-150Hz, 2G)
Bumps Standard
IEC 68-2-29 Eb (10G 16ms)
Humidity Standard
EN 61347-2-12 clause 11
Approval Marks

F-Marking

CE marking

ENEC certificate

VDE-EMV certificate
Hum And Noise Level
< 30 dB(A)
Product data

Full product code
871829124147800
Order product name
HID-PV Xt 140 CPO Q 208-277V
EAN UPC – Product
8718291241478
Order code
913700685666
Numerator – Quantity Per Pack
1
Numerator – Packs per outer box
12
Material Nr. (12NC)
913700685666
Net Weight (Piece)
0.820 kg
