Philips HID-PV C 70 S CDM Sale

$21.32

22 people are viewing this right now
14 products sold in last 15 hours
Selling fast! Over 4 people have this in their carts
  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping & Returns : On all orders over $200
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout

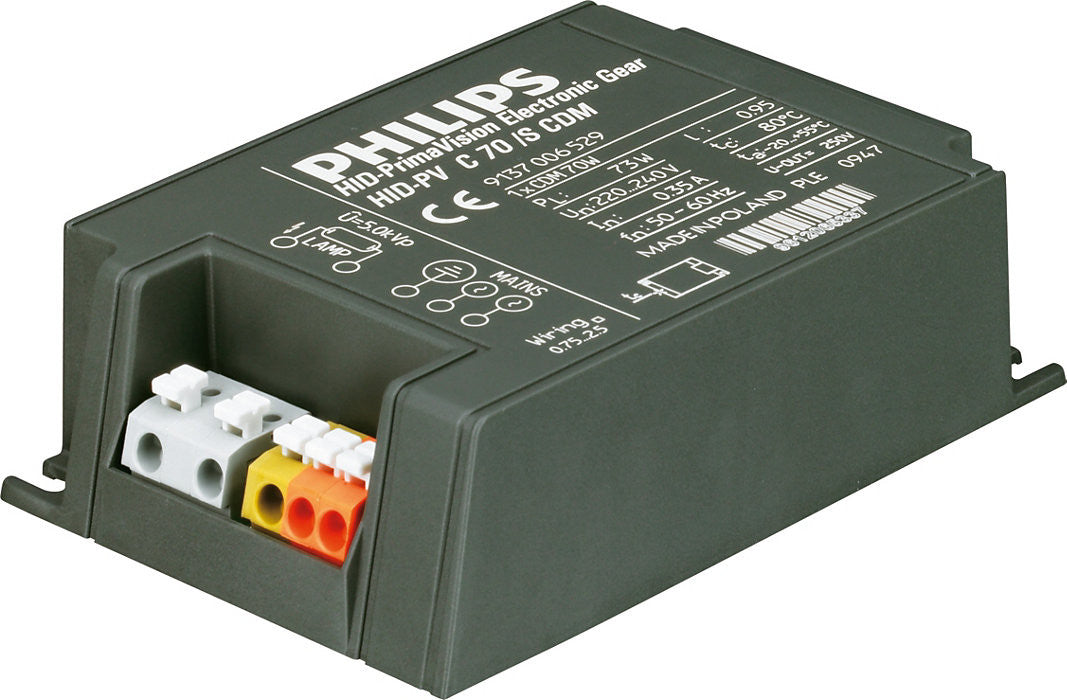

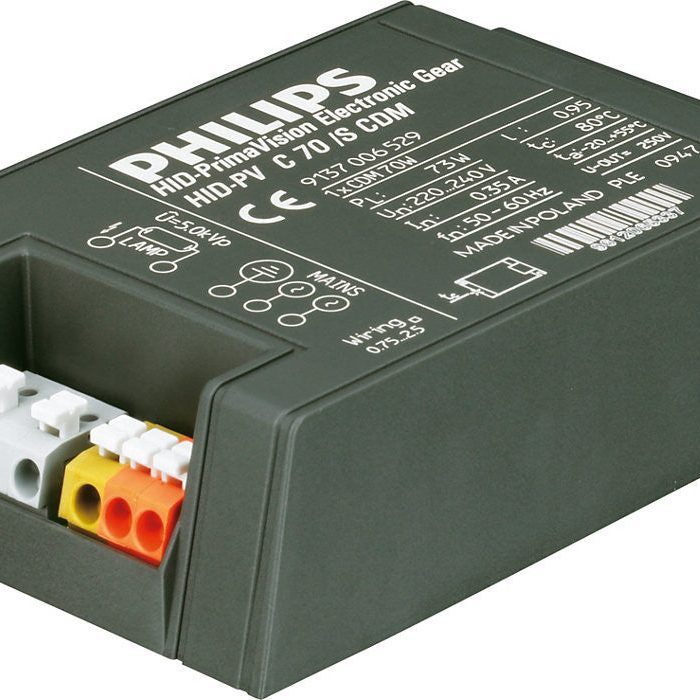

The Philips HID-PV C 70 S CDM electronic ballast runs 1x70w metal halide lamps.this ballast is for use in luminaire, minimal lamp power spread, microprocessor controlled, lamp end of life detection, long lifetime of 40,000 hours, lamp life is increased by up to 30% for CDM lamps, silent operation without hum it is also RoHS compliant. This Philips HID-PV is usually used in accent and decorative lighting for shops and retail, public spaces, lobbies and offices. This unit is designed for optimum system performance with Philips MASTERcolour CDM lamps.



Specifications

General information

Type Version
ng
Lamp Type
CDM
Number of Lamps
1 piece unit
Suitable For Outdoor Use
No
Number of Products on MCB (16A Type B) (Nom)
20
Automatic Restart
Yes
Operating and electrical

Input Voltage
220 to 240 V
Input Frequency
50 to 60 Hz
Operating Frequency (Nom)
0.14 kHz
Power Factor 100% Load (Nom)
0.95
Ignition Voltage (Max)
4.0 kV
Ignition Switch-Off Time (Nom)
18 min
Mains Voltage Performance (AC)
-10%-+6%
Mains Voltage Safety (AC)
-18%-+10%
Inrush Current Width
0.33 ms
Constant Wattage Deviation
-3% +3%
Power Losses (Nom)
7.0 W
Inrush Current Peak (Max)
33 A
Efficiency at full load [%]
90.60000000000001 %
Wiring

Cable Capacity Output Wires Mutual (Nom)
100 pF
Cable Length From Device to Lamp
1.5 m
Ballast Contact Wire Cross Section
0.50-2.50 mm²
Connector Type
Insert
System characteristics

Rated Ballast-Lamp Power
70 W

Temperature

T-Ambient (Max)
50 °C
T-Ambient (Min)
-20 °C
T-Storage (Max)
80 °C
T-Storage (Min)
-25 °C
T-Case Lifetime (Nom)
80 °C
T-Case Maximum (Max)
80 °C
Mechanical and housing

Housing
S

Approval and application

Active Temperature Protection
Yes
EMI 9 kHz … 300 MHz
CISPR 15 ed 7.2
Safety Standard
EN 61347-2-12
Quality Standard
ISO 9000:2000
Environmental Standard
ISO 14001
Harmonic Current Emission Standard
EN 61000-3-2
EMC Immunity Standard
EN 61547
Vibration Standard
IEC68-2-6 F c
Bumps Standard
IEC 68-2-29 Eb
Humidity Standard
IEC 928-13
Approval Marks

CE marking

ENEC certificate
Hum And Noise Level
37 dB(A)
Product data

Full product code
872790085974400
Order product name
HID-PV C 70 S CDM 220-240V 50 60Hz NG
EAN UPC – Product
8711500881694
Order code
913700652966
Numerator – Quantity Per Pack
1
Numerator – Packs per outer box
12
Material Nr. (12NC)
913700652966
Net Weight (Piece)
0.216 kg
