This item is now obsolete please consider the below as an alternative Â

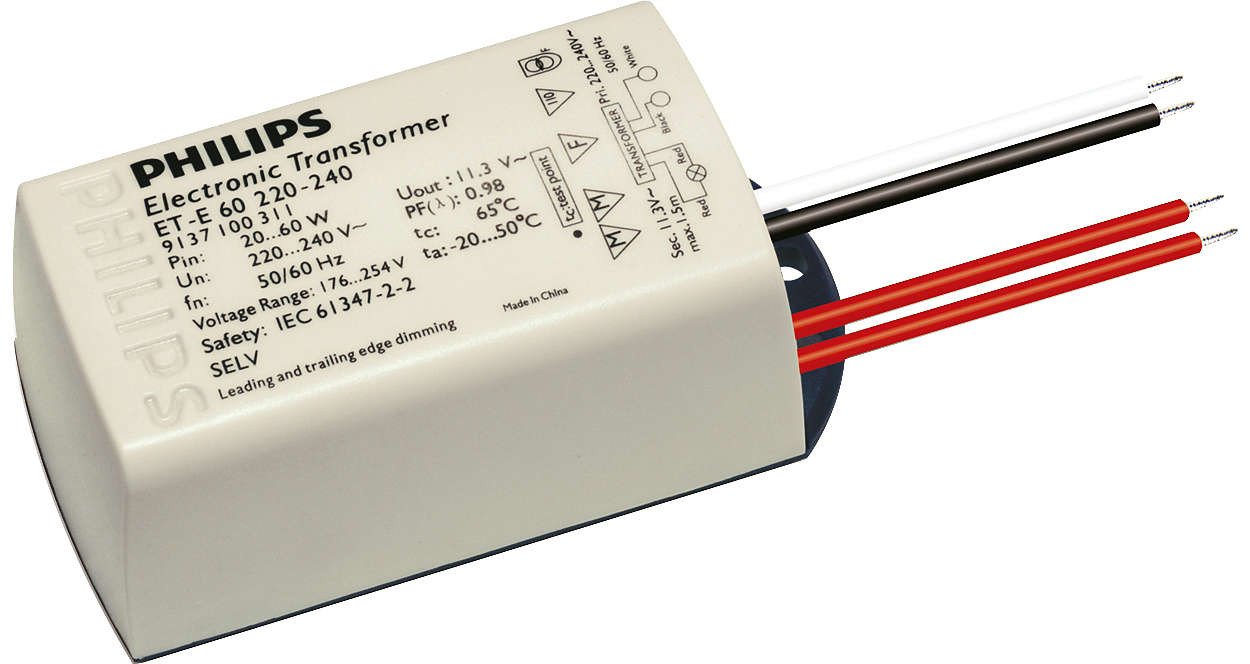

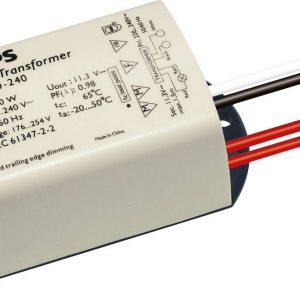

Philips ET-E 60 220-240V 50 60Hz HF Dimming electronic transformer for 12V halogen.
Specifications
- General information
-
-
Type Version
–
Lamp Type
LV Halogen
Automatic Restart
Yes
-
- Operating and electrical
-
-
Input Voltage
220 to 240 V
Input Frequency
50 to 60 Hz
Power Factor 100% Load (Nom)
0.9
Mains Voltage Performance (AC)
-10%-+10%
Mains Voltage Safety (AC)
-8%-+6%
Power Losses (Nom)
4 W
Inrush Current Peak (Max)
15 A
Output Voltage
– V
-
- Wiring
-
-
Cable Capacity Wires Device to Lamp (Max)
120 nF
Cable Length From Device to Lamp
1.5 m
Wire Striplength
8.0-9.0 mm
Cable Capacity Output Wires to Earth (Max)
120 pF
-
- System characteristics
-
-
Rated Ballast-Lamp Power
60 W
-
- Temperature
-
-
T-Ambient (Max)
50 °C
T-Ambient (Min)
-20 °C
T-Storage (Max)
80 °C
T-Storage (Min)
-40 °C
T-Case Maximum (Max)
65 °C
-
- Approval and application
-
-
Hum And Noise Level
< 30 dB(A)
-
- Product data
-
-
Full product code
697013372901400
Order product name
ET-E 60 220-240V 50 60Hz
EAN UPC – Product
- General information
-
Type Version –Lamp Type LV HalogenAutomatic Restart Yes- Operating and electrical
Input Voltage 220 to 240 VInput Frequency 50 to 60 HzPower Factor 100% Load (Nom) 0.9Mains Voltage Performance (AC) -10%-+10%Mains Voltage Safety (AC) -8%-+6%Power Losses (Nom) 4 WInrush Current Peak (Max) 15 AOutput Voltage – V- Wiring
Cable Capacity Wires Device to Lamp (Max) 120 nFCable Length From Device to Lamp 1.5 mWire Striplength 8.0-9.0 mmCable Capacity Output Wires to Earth (Max) 120 pF- System characteristics
Rated Ballast-Lamp Power 60 W- Temperature
T-Ambient (Max) 50 °CT-Ambient (Min) -20 °CT-Storage (Max) 80 °CT-Storage (Min) -40 °CT-Case Maximum (Max) 65 °C- Approval and application
Hum And Noise Level < 30 dB(A)- Product data
Full product code 697013372901400Order product name ET-E 60 220-240V 50 60HzEAN UPC – Product
