THIS ITEM IS OBSOLETE,IF YOU ARE USING THE DALI DIMMING FEATURE THE BELOW WILL WORK
HOWEVER IF ITS THE DSI DIMMING FEATURE THEN WE ARE UNABLE TO OFFER ANY ALTERNATIVE

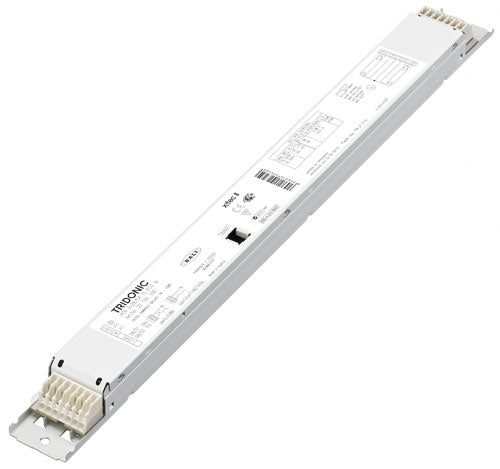

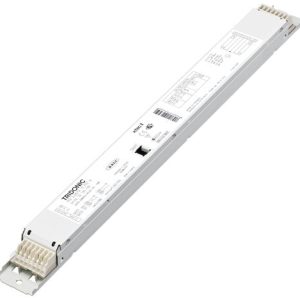

Digital Dimming Ballast to run 2 X 35 49w T5 tubes – PCA 2×35 49 T5 ECO – 22185097
Product description
- Processor-controlled ballast with xitec II inside
-
- Highest possible energy class CELMA EEI = A1 BAT (1)
-
- Noise-free precise control via DALI or DSI signal, switchDIM or corridorFUNCTION
-
- Nominal lifetime up to 100,000 h (at ta 50 °C with a failure rate ≤ 0.2 % per 1,000 h)
-
- Multilamp management
-
- OEM-specific reserved memory areas
-
- 5 years guarantee
-
Interfaces
- DALI
-
- DSI
-
- switchDIM (with memory function + selectable dimming rate)
-
- corridorFUNCTION (3 preprogrammed profiles)
-
- Integrated SMART interface for function with SMART Sensor 5D 19f and corridorFUNCTION plugs
-
Functions
- Intelligent Temperature Guard (overtemperature protection)
-
- Intelligent Voltage Guard (overvoltage indication and undervoltage shutdown)
-
- Optimum filament heating in any dimmer setting
-
- Disconnection of filament heating from a dimming level of approx. 90 % for maximum energy efficiency (SMART-Heating concept)
-
- corridorFUNCTION with ambient light control
-
- Automatically triggered emergency lighting value in DC mode, 15 %
-
- For emergency lighting systems as per EN 50172
-
- Automatic start after replacement of defective lamps
-
- Automatic shutdown if the lamp is faulty
-
- Processor-controlled ballast with xitec II inside
- Highest possible energy class CELMA EEI = A1 BAT (1)
- Noise-free precise control via DALI or DSI signal, switchDIM or corridorFUNCTION
- Nominal lifetime up to 100,000 h (at ta 50 °C with a failure rate ≤ 0.2 % per 1,000 h)
- Multilamp management
- OEM-specific reserved memory areas
- 5 years guarantee
- DALI
- DSI
- switchDIM (with memory function + selectable dimming rate)
- corridorFUNCTION (3 preprogrammed profiles)
- Integrated SMART interface for function with SMART Sensor 5D 19f and corridorFUNCTION plugs
-
- Intelligent Temperature Guard (overtemperature protection)
- Intelligent Voltage Guard (overvoltage indication and undervoltage shutdown)
- Optimum filament heating in any dimmer setting
- Disconnection of filament heating from a dimming level of approx. 90 % for maximum energy efficiency (SMART-Heating concept)
- corridorFUNCTION with ambient light control
- Automatically triggered emergency lighting value in DC mode, 15 %
- For emergency lighting systems as per EN 50172
- Automatic start after replacement of defective lamps
- Automatic shutdown if the lamp is faulty
-
