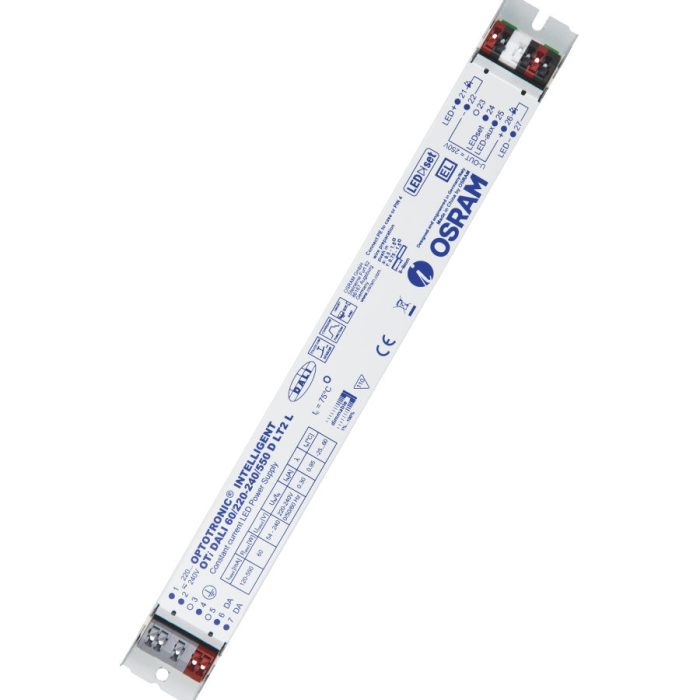

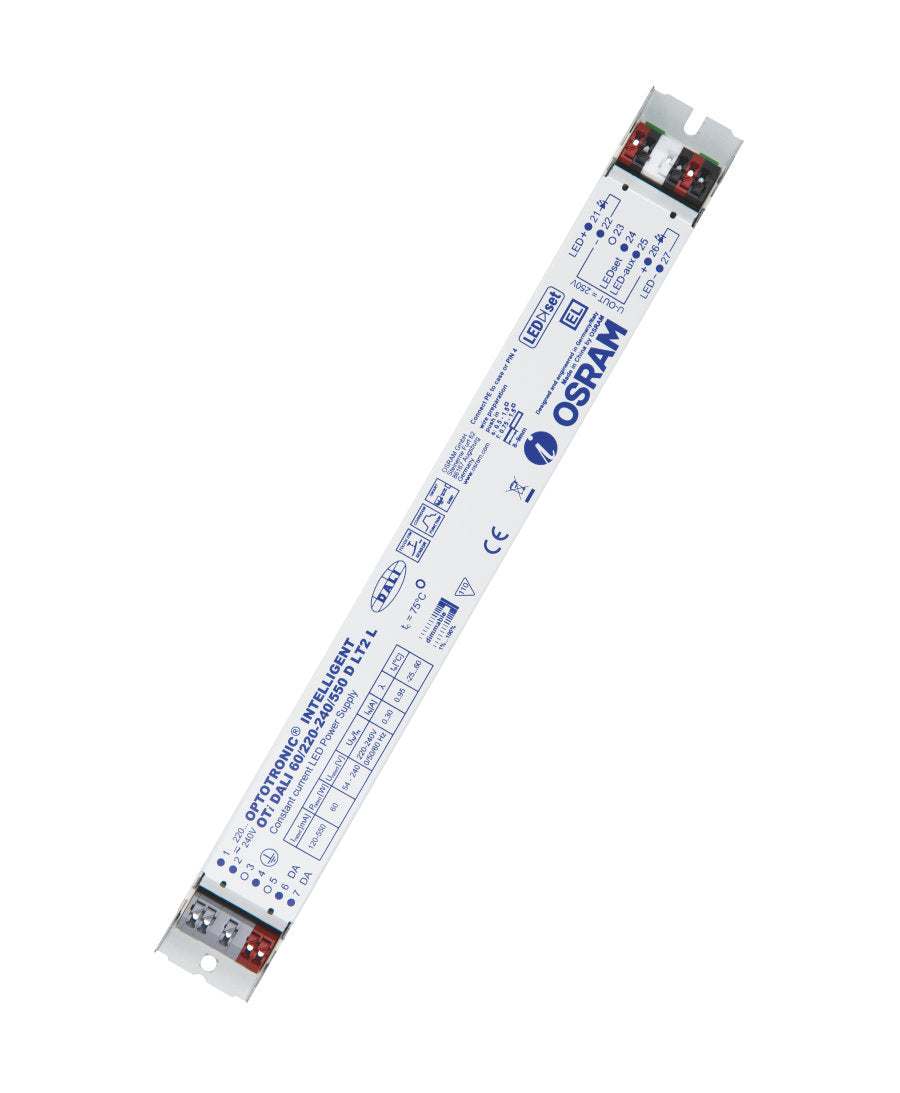

Name: Shop for pro 27.43 OTi DALI 60 220…240 550 D LT2 L 8 a Fashion
SKU: 2938E27323BEC126
Price: 27.43 USD
Availability: InStock

Product family benefits

Fully programmable via software (DALI Interface)

Flexible current setting (LEDset2)

Lifetime: up to 100,000 h (temperature at T_{c_{= 65 °C, max. 10 % failure rate)}}

High-quality dimming of 1…100 % by amplitude dimming (except 80 W versions)

High quality of light thanks to <1% output ripple current

Very high efficiency

Very low standby power consumption: < 0.25 W

Fulfill safety requirement due to overload, overtemperature, Hot Plug protection

Versatile scope of application due to OSRAM DALI Technology:

Easy to use in corridors and restrooms because of three-level Corridor function

Touch DIM application: easy to control via pushbutton or sensor

Energy efficient Touch DIM operation due to automatic switch-off at sufficient residual light

Suitable for emergency Installations (acc. to EN 60598-2-22 and IEC 61347-2-13, appendix J) thanks to DC detection (0 Hz, pulsating DC), on off switchable

Feedback of power consumption and operating hours (Fit for SMART GRID)

Suitable for buildings according to EPBD BREEAM LEED due to automatic Constant Lumen Output setting

Luminaire information for easy maintenance

Areas of application

Linear lighting for office, education, industry, storage areas and retail

Installation in emergency lighting systems according to IEC 61347-2-13, appendix J

Suitable for luminaires of protection class I

Data sheet

More downloads

Technical Data

Electrical data

Nominal input voltage

220…240 V

Mains frequency

50…60 Hz

Input voltage AC

198…264 V

Input voltage DC

176…276 V

Current set

DALI LEDset Programmable

Total harmonic distortion

< 10 %

Power factor λ

> 0.95

Efficiency in full-load

92.5 %

Device power loss

5.0 W

Networked standby power

≤0.30 W

Inrush current

25 A

Max. ECG no. on circuit breaker 10 A (B)

15

Max. ECG no. on circuit breaker 16 A (B)

24

Max. ECG no. on circuit breaker 25 A (B)

37

Surge capability (L N-Ground)

2 kV

Surge capability (L-N)

1 kV

Nominal output voltage

54…240 V

U-OUT (working voltage)

< 250 V

Nominal output current

120…550 mA

Output current LEDset open

60 mA

Output current LEDset shorted

120 mA

Default output current

60 mA

Output current tolerance

±3 %

Output ripple current (100 Hz)

< 1 %

Output PSTLM

≤1

Output SVM

≤0.4

Nominal output power

6.4…60 W

Maximum output power

60 W

Galvanic isolation

Non isolated

Dimensions & weight

Mounting hole spacing, length

270.0 mm

Product weight

205.00 g

Cable cross-section, input side

0.5…1.5 mm²

Cable cross-section, output side

0.5…1.5 mm²

Wire preparation length, input side

8.5…9.5 mm

Wire preparation length, output side

8.5…9.5 mm

Length

280.0 mm

Height

21.0 mm

Width

30.0 mm

Colors & materials

Casing material

Metal

Temperatures & operating conditions

Ambient temperature range

-25…+60 °C

Maximum temperature at tc test point

75 °C

Max.housing temperature in case of fault

110 °C

Temperature range at storage

-25…85 °C

Permitted rel. humidity during operation

5…85 %

Lifespan

ECG lifetime

50000 100000 h

Additional product data

Encapsulated

No

Capabilities

Programming interface

DALI, LEDset

Dimmable

Yes

Dimming interface

DALI-2 Touch DIM Touch DIM Sensor

Dimming range

1…100 %

Dimming method

Full analogue dimming

Overheating protection

Automatic reversible

Overload protection

Automatic reversible

Short-circuit protection

Automatic reversible

No-load proof

Yes

Intended for no-load operation

No

Max. cable length to lamp LED module

2.0 m

Suitable for fixtures with prot. class

I

Suitable for emergency lighting

Yes

Type of connection, input side

Push terminal

Type of connection, output side

Push terminal

DALI-2 Energy Data

Yes

Control interface

DALI

Number of channels

1

DALI-2 Diagnostic Data

Yes

Programming

Programming device

DALI magic

Tuner4TRONIC

Yes

Tuner4TRONIC Field App

Yes

Programmable features

DALI-2 Luminaire Data

Yes

Certificates & standards

Approval marks – approval

CE EL VDE-ENEC VDE-EMC EAC CCC BIS RCM

Standards

Acc. to EN 61347-1 Acc. to EN 61347-2-13 Acc. to EN 55015 Acc. to EN 61547 Acc. to EN 61000-3-2 Acc. to EN 62384 Acc. to EN 62386

Type of protection

IP20

Logistical data

Commodity code

850440829000

Environmental information

Information according Art. 33 of EU Regulation (EC) 1907 2006 (REACh)

Date of Declaration

23-12-2021

Primary Article Identifier

4052899188662 | 4052899315884 | 4052899494206 | 4062172082167

Candidate List Substance 1

Lead

CAS No. of substance 1

7439-92-1

Safe Use Instruction

The identification of the Candidate List substance is sufficient to allow safe use of the article.

Declaration No. in SCIP database

d8f69d0a-873d-4c9b-b472-095ce690d3dd | | 98e9d2e2-470f-4c61-8609-62ccc0499a93 | e06d8873-1ba2-4a16-a452-97f8720ce340

Packaging information

EAN

Unit

Piece

Dimension l x w x h

Weight

Volume

4052899494206
UNV

1
280mm x 30mm x 21mm
205.00g
0.18dm³

4052899494213
VS

20
305mm x 161mm x 104mm
4277.00g
5.11dm³

Title
Default Title

Related products

Product on sale

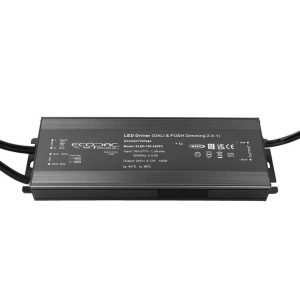

ELED-100-DP2 Series DALI Dimmable Constant Voltage LED Drivers 100W 12v 24v IP66 Sale
0 out of 5
$40.66
Select options

Product on sale

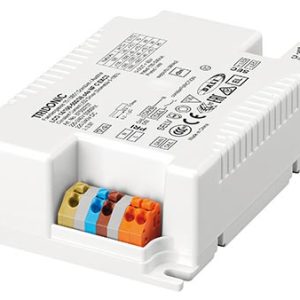

Driver LCO 14W 100–500mA 38V one4all NFC C EXC3 excite NFC outdoor series Online now
0 out of 5
$21.18
Select options

Product on sale

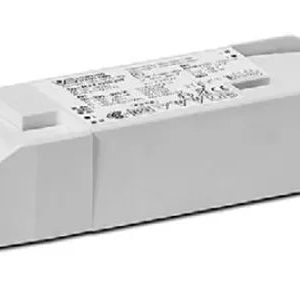

ECXD1050.299 SR 186763 Vossloh Schwabe Dali Dimmable For Cheap
