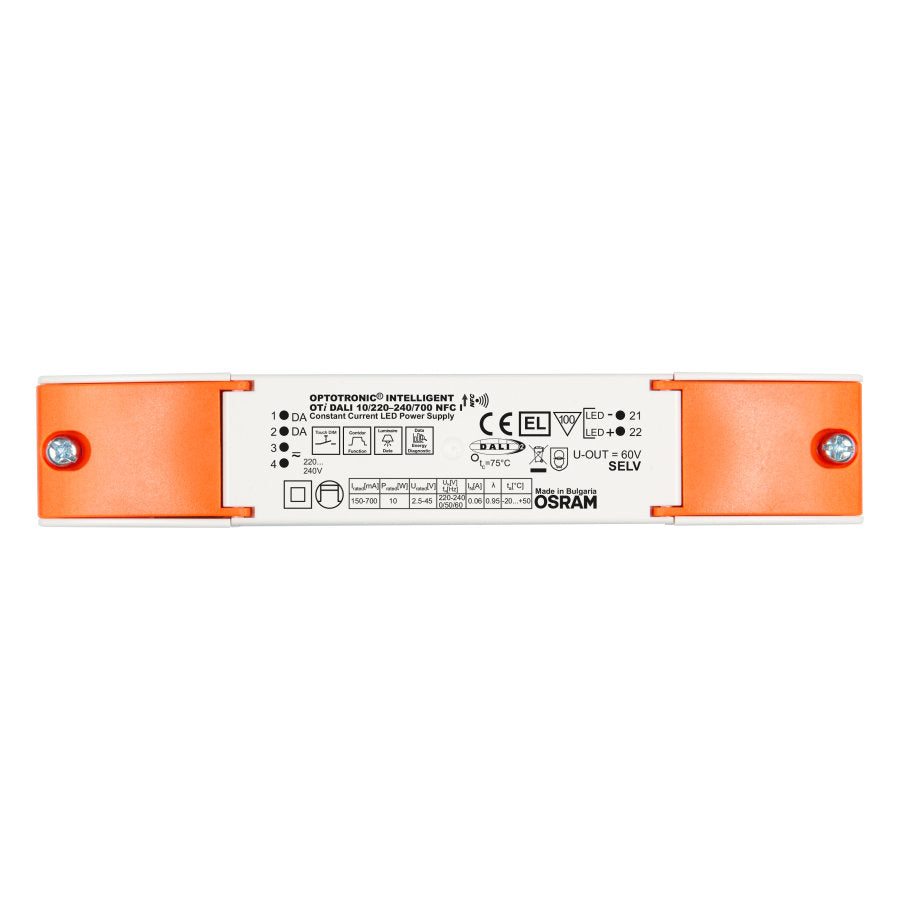

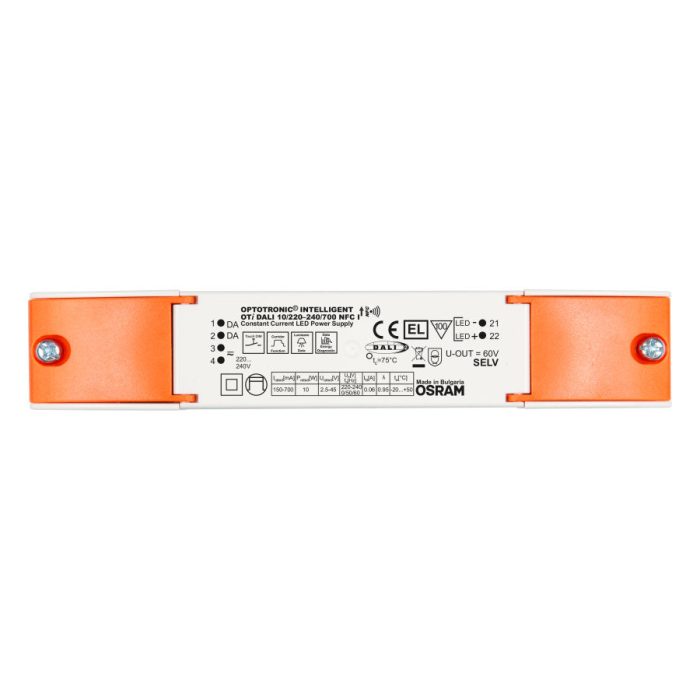

Name: The Official Online Store of 17.89 OTi DALI 10 220…240 700 NFC I 4062172151252 on Sale
SKU: C7AD7EE5EBA311E9
Price: 17.89 USD
Availability: InStock

Product family benefits

Versatile DALI window driver due to flexible output characteristic

Locking and unlocking of luminaire driver data

Easy and fast output current setting via NFC

Very high efficiency

High-quality dimming of 1…100 % by amplitude dimming

DALI-2 certified incl. Parts 251, 252, 253

Areas of application

Suitable for downlights, spotlights and LED panels

Suitable for use in luminaires with flexible current setting

Installation in emergency lighting systems according to IEC 61347-2-13, appendix J

Suitable for indoor SELV installations

Suitable for luminaires of protection classes I and II

Data sheet

More downloads

Technical Data

Electrical data

Nominal input voltage

220…240 V

Mains frequency

0 50 60 Hz

Input voltage AC

198…264 V

Input voltage DC

176…276 V

Total harmonic distortion

15 %

Power factor λ

> 0.98 > 0.94

Efficiency in full-load

82 %

Device power loss

3.5 W

Networked standby power

≤0.15 W

Inrush current

< 5 A

Max. ECG no. on circuit breaker 10 A (B)

80

Max. ECG no. on circuit breaker 16 A (B)

130

Surge capability (L N-Ground)

2 kV

Surge capability (L-N)

1 kV

Nominal output voltage

2.5…45 V

U-OUT (working voltage)

60 V

Nominal output current

150…700 mA

Default output current

350 mA

Output current tolerance

±3 %

Output ripple current (100 Hz)

< 2 %

Output PSTLM

≤1

Output SVM

≤0.4

Nominal output power

10 W

Maximum output power

10 W

Current set

DALI NFC

Galvanic isolation DALI mains

Basic

Galvanic isolation DALI output

SELV

Galvanic isolation primary secondary

SELV

Dimensions & weight

Mounting hole spacing, length

132.0 mm

Product weight

76.00 g

Cable cross-section, input side

0.2…1.5 mm²

Cable cross-section, output side

0.2…1.5 mm²

Wire preparation length, input side

8.0…9.1 mm

Wire preparation length, output side

8.0…9.1 mm

Width

30.0 mm

Height

22.0 mm

Length

166.0 mm

Colors & materials

Casing material

Plastic

Temperatures & operating conditions

Ambient temperature range

-25…+50 °C

Maximum temperature at tc test point

75 °C

Max.housing temperature in case of fault

110 °C

Temperature range at storage

-40…+85 °C

Permitted rel. humidity during operation

5…85 %

Lifespan

ECG lifetime

50000 100000 h

Additional product data

Encapsulated

No

Capabilities

Dimmable

Yes

Dimming interface

DALI-2 Touch DIM Touch DIM Sensor

Dimming range

1…100 %

Dimming method

Amplitude Modulation

Overheating protection

Automatic reversible

Overload protection

Automatic reversible

Short-circuit protection

Automatic reversible

No-load proof

Yes

Intended for no-load operation

No

Max. cable length to lamp LED module

2.0 m

Suitable for fixtures with prot. class

I II

Type of connection, input side

Push terminal

Type of connection, output side

Push terminal

Constant lumen function

Programmable

Number of channels

1

Suitable for emergency lighting

Yes

DALI-2 Diagnostic Data

Yes

DALI-2 Energy Data

Yes

Control interface

DALI

Programming interface

DALI, NFC

Programming

Tuner4TRONIC Field App

Yes

Box programming

Yes

Programming device

DALI NFC

Tuner4TRONIC

Yes

Programmable features

Dim to Dark

Yes

Emergency Mode

Yes

DALI-2 Luminaire Data

Yes

Configuration Lock

Yes

OEM Key

No

Driver Guard

Yes

Lamp Operating Time

Yes

Constant Lumen

Yes

DALI Settings

Yes

Soft Switch Off

Yes

Certificates & standards

Approval marks – approval

ENEC VDE-EMC EL CE DALI-2

Standards

Acc. to IEC 61347-1 Acc. to IEC 61347-2-13 Acc. to IEC 55015 Acc. to IEC 61547 Acc. to IEC 61000-3-2 Acc. to IEC 62384 Acc. to IEC 62386 Acc. to IEC 62386-101:Ed2 Acc. to IEC 62386-102:Ed2 Acc. to IEC 62386-207:Ed1

Protection class

II

Type of protection

IP20

Logistical data

Commodity code

850440829000

Environmental information

Information according Art. 33 of EU Regulation (EC) 1907 2006 (REACh)

Date of Declaration

23-12-2021

Primary Article Identifier

4062172151252

Candidate List Substance 1

Lead

CAS No. of substance 1

7439-92-1

Safe Use Instruction

The identification of the Candidate List substance is sufficient to allow safe use of the article.

Declaration No. in SCIP database

29b9dba8-1ed1-4837-96a0-fbcd3972c828

Packaging information

EAN

Unit

Piece

Dimension l x w x h

Weight

Volume

4062172151252
UNV

1
166mm x 30mm x 22mm
76.00g
0.11dm³

4062172151269
VS

20
344mm x 126mm x 83mm
1639.00g
3.60dm³
