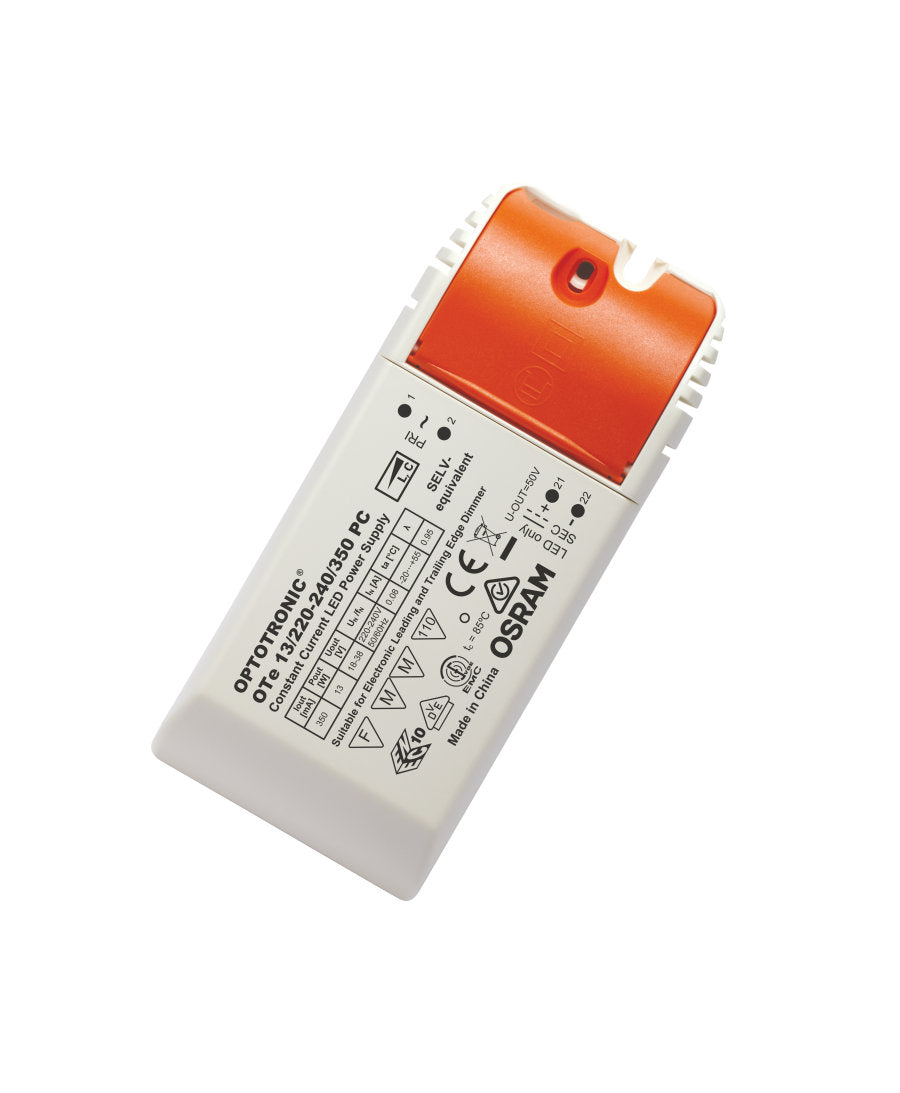

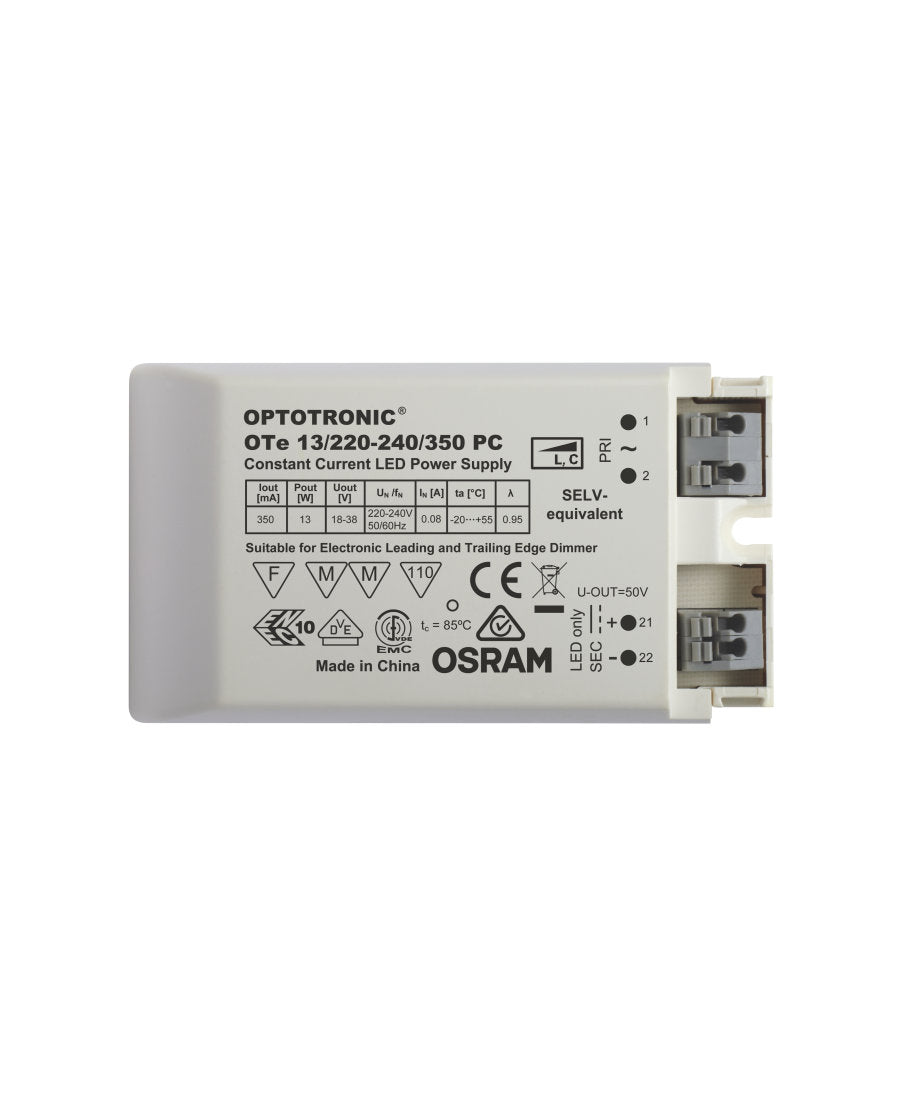

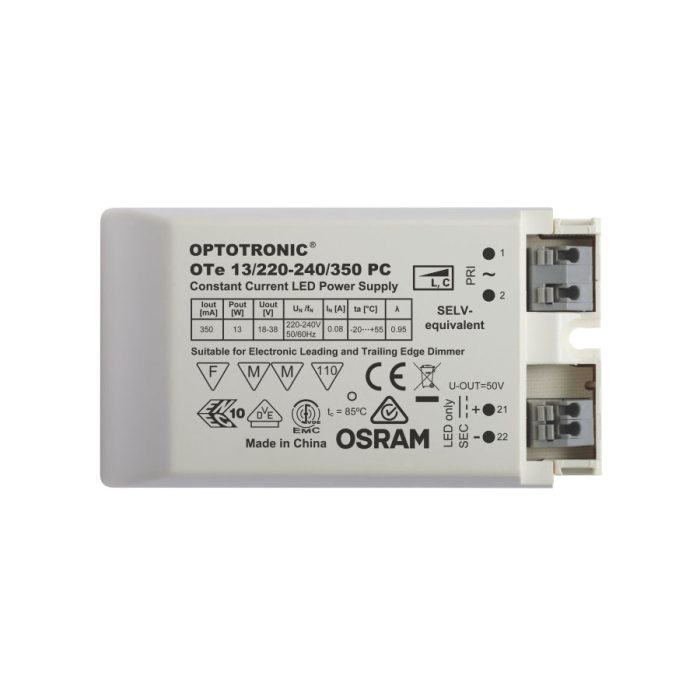

OTe 13 220…240 350 PC Online Sale

Nominal output voltage

18…38 V

U-OUT (working voltage)

50 V

Nominal output current

350 mA

Output current tolerance

±10 %

Output ripple current (100 Hz)

25 %

Output PSTLM

≤1

Output SVM

≤0.6

Nominal output power

13 W

Maximum output power

13 W

Galvanic isolation primary secondary

SELV

Current set

Fixed current

Dimensions & weight

Mounting hole spacing, length

–

Mounting hole spacing, width

–

Product weight

81.00 g

Cable cross-section, input side

0.75…1.5 mm²

Cable cross-section, output side

0.5…1.5 mm²

Wire preparation length, input side

8.0…9.0 mm

Wire preparation length, output side

8.0…9.0 mm

Height

25.0 mm

Width

53.0 mm

Length

95.0 mm

Colors & materials

Casing material

Plastic

Temperatures & operating conditions

Ambient temperature range

-20…+55 °C

Maximum temperature at tc test point

85 °C

Max.housing temperature in case of fault

110 °C

Temperature range at storage

-25…75 °C

Permitted rel. humidity during operation

5…85 %

Lifespan

ECG lifetime

50000 h

Capabilities

Dimmable

Yes

Dimming interface

Phase Cut

Dimming range

10…100 %

Dimming method

Amplitude Modulation

Overheating protection

Automatic reversible

Overload protection

Automatic reversible

Short-circuit protection

Automatic reversible

No-load proof

Yes

Intended for no-load operation

No

Max. cable length to lamp LED module

2.0 m

Suitable for fixtures with prot. class

I II

Type of connection, output side

Push terminal

Suitable for through-wiring

No

Certificates & standards

Approval marks – approval

CE ENEC 10 VDE CB

Standards

Acc. to IEC 61347-1 Acc. to IEC 61347-2-13 Acc. to IEC 62384 Acc. to CISPR 15 Acc. to IEC 61000-3-2 Acc. to IEC 61000-3-3 Acc. to IEC 61547

Protection class

II

Type of protection

IP20

Logistical data

Commodity code

850440839000

Environmental information

Information according Art. 33 of EU Regulation (EC) 1907 2006 (REACh)

Date of Declaration

05-05-2023

Primary Article Identifier

4052899105324

Candidate List Substance 1

Lead

CAS No. of substance 1

7439-92-1

Safe Use Instruction

The identification of the Candidate List substance is sufficient to allow safe use of the article.

Declaration No. in SCIP database

a00aea49-8dd4-48d8-b0a5-4190000b7d45
