Obsolete, this how been replaced with the ADM 1-K which will be supplied with a new smaller lithium battery

Replacement

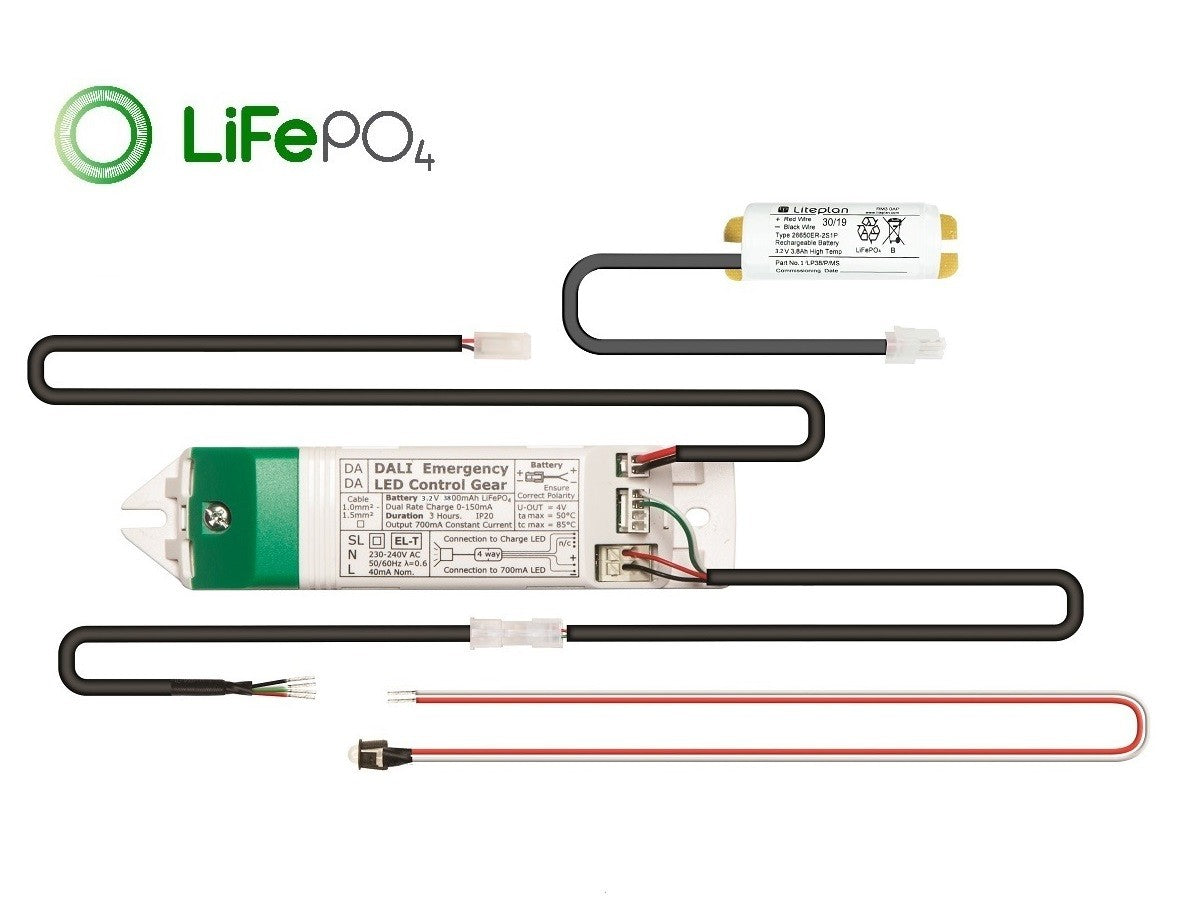

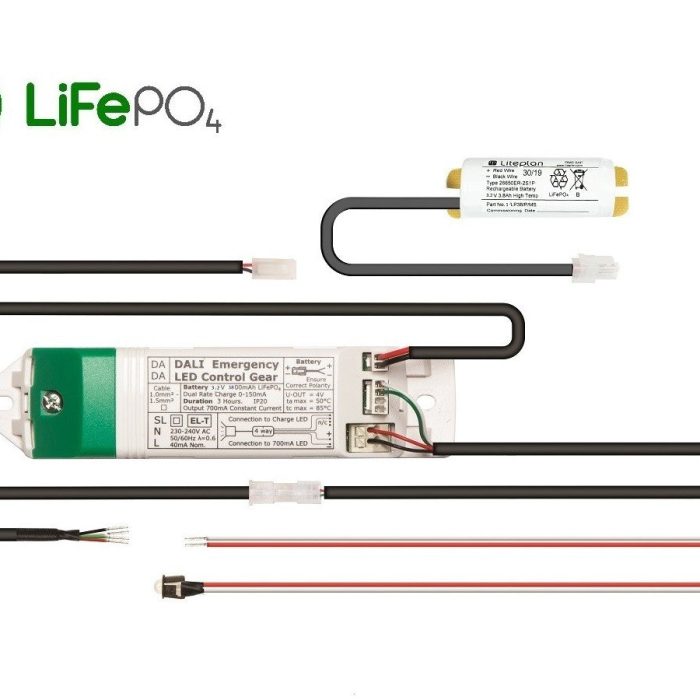

A 3-hour emergency DALI self-test driver designed for constant current LED devices, supplied complete with extra long life LiFePO4 battery packs. This product is suitable for integral applications. The DLP 1 operates a single 4V chip at 550mA. In keeping with the DALI standard, this unit will revert to standalone self-test if not connected to a DALI operating system. For a full list of our compatible devices, please see our LED Device range.

This range operates with LiFePO4 battery technology, dramatically reducing energy consumption and facilities management labour due their long operational life.

DLP 1 DALI Addressable Range

Specifications

    • For Integral Use with Slim Batteries
    • High Temperature Tolerance Batteries
    • Extra Long Life LiFePO4 Batteries
    • DALI Self-Test Module
    • High Output (700mA) Version Available
      •

        		 DLP 1
        Input Voltage

        		 230-240 Volts AC – 50 60Hz
        Power Rating

        Charging Maintained: 32mA λ = 0.6

        Standby Non-Maintained: 8mA λ = 0.15
        Em. Duration

        		 3-hours
        Battery Type

        		 IRF26650 LiFePO4
        Battery Voltage

        		 3.2V
        Battery Capacity

        		 3.8Ah
        Charge Current

        		 Dual Rate 0-225mA
        Discharge Current

        		 700mA nominal
        Recharge Time

        		 24-hours
        TC Max

        		 60°C Module 55°C Battery
        Output Load

        		 1 x 2W
        Output Current

        		 550mA
        Module Dims.

        		 149mm x 35mm x 28mm
        Battery Dimensions (with end caps)

        		 220mm long x 22mm wide x 24mm high
        Fixing Centres

        		 132mm x M4
        Module Weight

        		 0.1Kg
        Battery Weight

        		 0.11Kg
