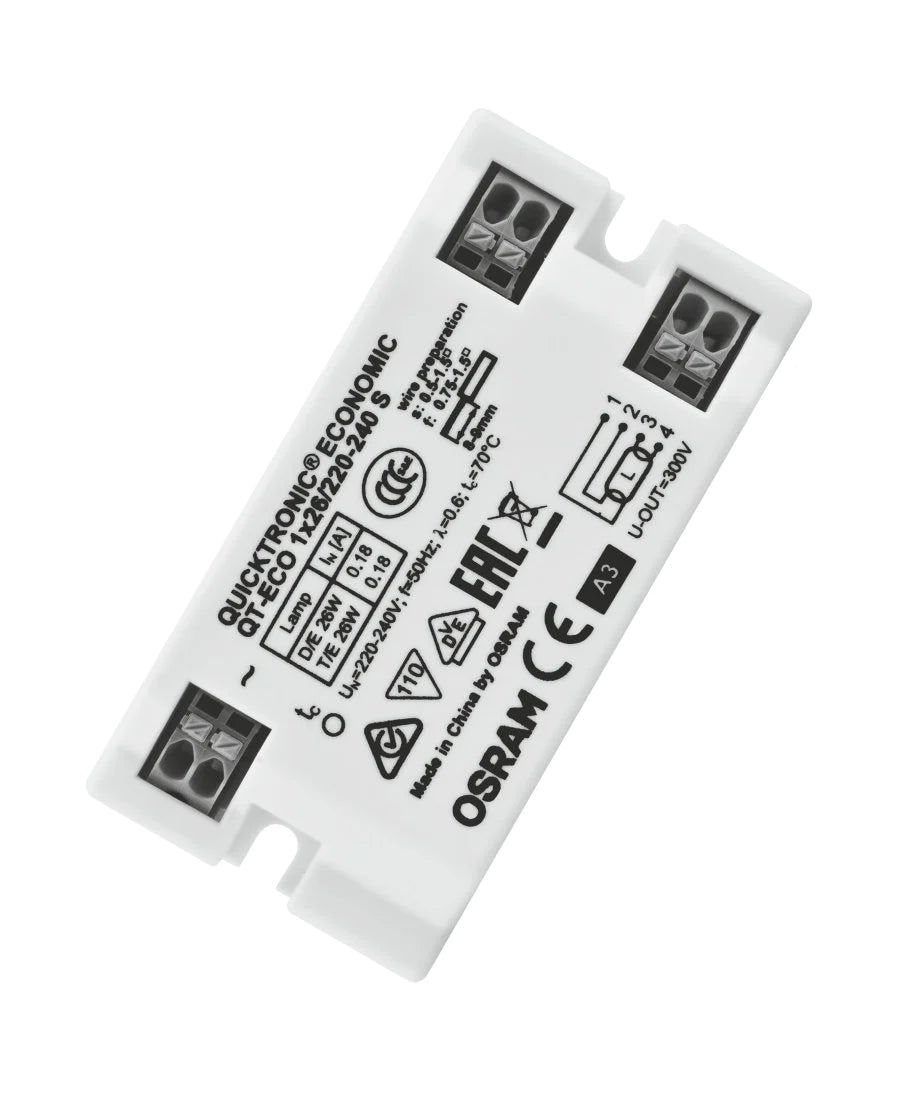

LEDVANCE OSRAM – QTECO126-S-OS 1x26w DE TE Electronic Ballast Square For Sale

Width

40.0 mm

Height

22.0 mm

Mounting hole spacing, length

72.0…75.0 mm

Product weight

50.00 g

Temperatures & operating conditions

Ambient temperature range

-15…+50 -15…+50 °C

Permitted rel. humidity during operation

5…85 %

Lifespan

ECG lifetime

30000 h

Additional product data

Suitable for lamp power (1 lamp)

4…16 W

Capabilities

End of lamp life safety shutdown

EOL T.2

Suitable for fixtures with prot. class

I II

Dimmable

No

Intended for no-load operation

No

Max. cable length to lamp LED module

1.0 m 0.5 m

Certificates & standards

Approval marks – approval

VDE

EEI – Energy Label

A2 A3

Standards

Acc. to EN 61347-2-3 Acc. to EN 55015:2006 + A1:2007 Acc. to EN 61000-3-2 Acc. to EN 61547

Type of protection

IP20

Protection class

I

Logistical data

Commodity code

85041080900

Environmental information

Information according Art. 33 of EU Regulation (EC) 1907 2006 (REACh)

Date of Declaration

19-05-2023

Primary Article Identifier

4050300638584

Candidate List Substance 1

Lead

CAS No. of substance 1

7439-92-1

Safe Use Instruction

The identification of the Candidate List substance is sufficient to allow safe use of the article.

Declaration No. in SCIP database

f9c950dd-e265-43d3-990e-9e4c82497823

Packaging information

EAN		Unit		Piece		Dimension l x w x h		Weight
4050300638584		UNV		1
4050300655260		VS		50		212mm x 172mm x 143mm		2684.00g
