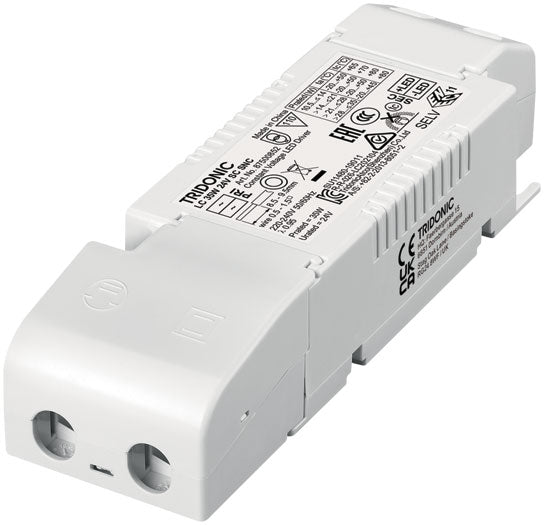

LC 35W 24V SC SNC 87500852 Cheap

Product description

• Constant voltage LED driver
• Output voltage 24 V
• Max. output power 35 W
• Dimmable via external PWM LED dimmers attached on output side
• The strain relief is included in both packaging variants. In the single packaging (SP) each Driver has also an individual packaging
• Nominal lifetime up to 50,000 h
• 5 years guarantee (conditions at www.tridonic.com)

• Article information

  Data sheet

  Common Data

  Approval marks:

  Rated supply voltage		220 – 240 V
  AC voltage range		198 – 264 V
  Mains frequency		50 60 Hz
  Overvoltage protection		320 V AC, 1 h
  Typ. rated current (at 230 V, 50 Hz, full load) (1)		176 mA
  Typ. input current in no-load operation		25 mA
  In-rush current (peak duration)		30 A 180 µs
  Max. input power		40 W
  Typ. input power in no-load operation		1 W
  Typ. efficiency (at 230 V, 50 Hz, full load)		86.5 %
  λ (at 230 V, 50 Hz, full load) (1)		0.95
  THD (at 230 V, 50 Hz, full load) (1)		< 10 %
  Starting time (at 230 V, 50 Hz, full load) (1)		< 0.5 s
  Turn off time (at 230 V, 50 Hz, full load)		< 0.5 s
  Hold on time at power failure (output)		0 s
  Output voltage tolerance		± 1 V
  Output LF voltage ripple (< 120 Hz)		± 1.5 %
  Max. output voltage (U-OUT)		25 V
  Mains surge capability (between L – N)		1 kV
  Mains surge capability (between L N – PE)		2 kV
  Burst capability		1 kV
  Type of protection		IP20
  Length		142 mm
  Width		43 mm
  Height		29.8 mm
  Lifetime		up to 50000 h
  Guarantee		5 years
