Product on sale

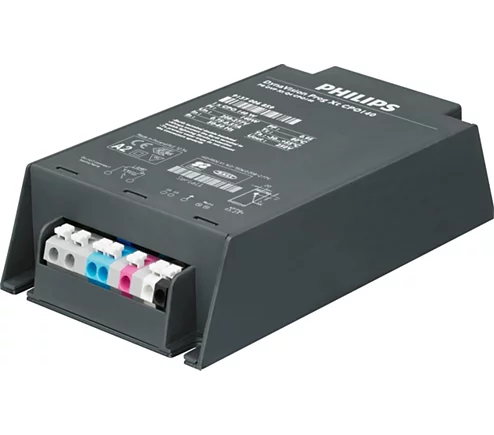

HID-DV PROG Xt 90 CPO Q 208-277V Supply

$96.72

23 people are viewing this right now
7 products sold in last 1 hour
Selling fast! Over 12 people have this in their carts
  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping & Returns : On all orders over $200
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout

Downloads

Spec Sheet
Size:1.0 MB

See all downloads

Specifications

Operating and Electrical

Input Current (Nom)
0.33 A
Earth Leakage Current (Max)
0.7 mA
Power Factor 50% Load (Min)
0.94
Input Voltage
208-240-277 V
Line Frequency
50 to 60 Hz
Inrush Current Width
0.47 ms
Input Frequency
50 to 60 Hz
Inrush Current Peak (Max)
52 A
Product Data

Numerator – Quantity Per Pack
1
Order product name
HID-DV PROG Xt 90 CPO Q 208-277V
Full product code
871829124151500
Order code
913700685866
Net weight
0.820 kg
EAN UPC – Case
8718291241522
Full product name
HID-DV PROG Xt 90 CPO Q 208-277V
Numerator – Packs per outer box
12
Material number (12NC)
913700685866
Approval and Application

Surge Protection (Common Differential)
EN61547 (L-L 2kV, L-G 4kV), 10 kV TIL
Environmental Standard
ISO 14001
Approval Marks

F-Marking

CE marking

CB Certificate

ENEC certificate

VDE-EMV certificate
Safety Standard
IEC 607, 609, 926, 928  [No Standard for HID Lamp drivers exists. Requirements in these standards to be used if considered relevant for the product.]
Controls and Dimming

Control Interface
PROG

Mechanical and Housing

Housing
Q

General Information

Number of Lamps
1 piece unit
Number of Products on MCB (16A Type B) (Nom)
5
Brand
Philips
Wiring

Connector Type
WAGO series 804
Cable Length From Device to Lamp
10 m
Temperature

Ambient temperature range
-30 °C to 55 °C
T-Case Lifetime (Nom)
80 °C
Title

Default Title
