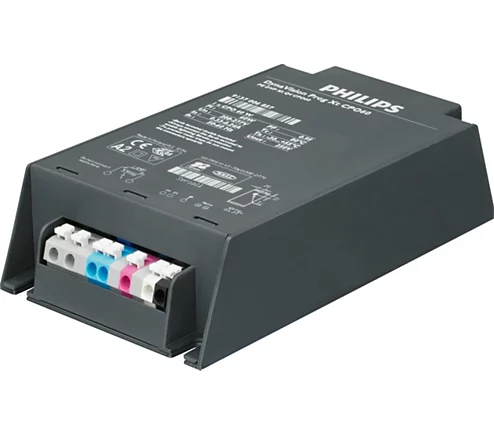

DynaVision Programmable Xtreme for CPO
https: www.lighting.philips.com main prof lighting-electronics hid hid-electronic-outdoor dynavision-programmable-xtreme-for-cpo 913700692866_EU product#:~:text=Downloads-,Spec%20Sheet,-Size%3A1.0%20MB
Specifications
- Operating and Electrical
-
-
Input Current (Nom)
0.26 A
Earth Leakage Current (Max)
0.7 mA
Input Voltage
208-240-277 V
Line Frequency
50 to 60 Hz
Power Factor 50% Load (Min)
0.93
Inrush Current Width
0.24 ms
Input Frequency
50 to 60 Hz
Inrush Current Peak (Max)
28 A
-
- Product Data
-
-
Numerator – Quantity Per Pack
1
Order product name
HID-DV PROG Xt 45 CPO Q 208-277V
Full product code
871829166914200
Order code
913700692866
Net weight
0.820 kg
EAN UPC – Case
8718291669159
Full product name
HID-DV PROG Xt 45 CPO Q 208-277V
Numerator – Packs per outer box
12
Material number (12NC)
913700692866
-
- Approval and Application
-
-
Surge Protection (Common Differential)
EN61547 (L-L 2kV, L-G 4kV), 10 kV TIL
Environmental Standard
ISO 14001
Approval Marks
F-Marking
CE marking
ENEC certificate
VDE-EMV certificate
Safety Standard
IEC 607, 609, 926, 928 Â [No Standard for HID Lamp drivers exists. Requirements in these standards to be used if considered relevant for the product.]
-
- Controls and Dimming
-
-
Control Interface
PROG
-
- Mechanical and Housing
-
-
Housing
Q
-
- General Information
-
-
Number of Lamps
1 piece unit
Number of Products on MCB (16A Type B) (Nom)
11
Brand
Philips
-
- Wiring
-
-
- Operating and Electrical
-
Input Current (Nom) 0.26 AEarth Leakage Current (Max) 0.7 mAInput Voltage 208-240-277 VLine Frequency 50 to 60 HzPower Factor 50% Load (Min) 0.93Inrush Current Width 0.24 msInput Frequency 50 to 60 HzInrush Current Peak (Max) 28 A- Product Data
Numerator – Quantity Per Pack 1Order product name HID-DV PROG Xt 45 CPO Q 208-277VFull product code 871829166914200Order code 913700692866Net weight 0.820 kgEAN UPC – Case 8718291669159Full product name HID-DV PROG Xt 45 CPO Q 208-277VNumerator – Packs per outer box 12Material number (12NC) 913700692866- Approval and Application
Surge Protection (Common Differential) EN61547 (L-L 2kV, L-G 4kV), 10 kV TILEnvironmental Standard ISO 14001Approval Marks F-Marking
CE marking
ENEC certificate
VDE-EMV certificate
Safety Standard IEC 607, 609, 926, 928 Â [No Standard for HID Lamp drivers exists. Requirements in these standards to be used if considered relevant for the product.]- Controls and Dimming
Control Interface PROG- Mechanical and Housing
Housing Q- General Information
Number of Lamps 1 piece unitNumber of Products on MCB (16A Type B) (Nom) 11Brand Philips- Wiring
