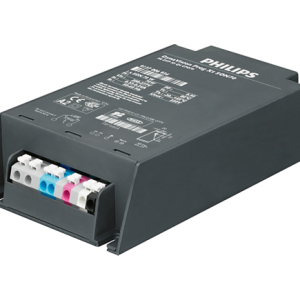

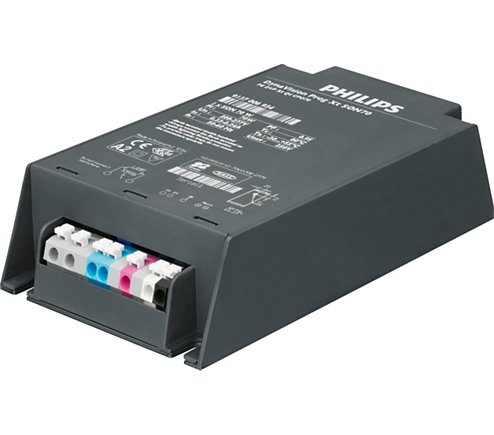

HID-DV PROG Xt 150 SON Q 208-277V 66930200 Fashion

$52.35

28 people are viewing this right now
2 products sold in last 12 hours
Selling fast! Over 16 people have this in their carts
  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping & Returns : On all orders over $200
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout

Specifications

General information

Remarks
UK importer address: Signify Commercial UK Limited, 3, Guildford Business Park, GU2 8XG
Application code
–
Type version
–
Lamp type
SON
Number of lamps
1 piece unit
Suitable for outdoor use
Yes
Number of products on MCB (16 A type B) (nom.)
5
Default lamp selected
SON150
Automatic restart
Yes
Operating and electrical

Input Voltage
208-240-277 V
Input frequency
50 to 60 Hz
Minimum mains voltage operation (min.)
172 V
Operating frequency (nom.)
0.40 kHz
Power factor 100% load (nom.)
0.99
Ignition voltage (max.)
5.0 kV
Ignition switch-off time (max.)
20 min
Mains voltage performance (AC)
188-305V
Mains voltage safety (AC)
160-305V
Earth leakage current (max.)
0.7 mA
Output peak voltage (max.)
250 V
Inrush current width
0.47 ms
Lamp power tolerance
-3% +3%
Input current (nom.)
0.77 A
Inrush current peak (nom.)
52 A
Efficiency at full load [%]
90.92 %
Wiring

Cable capacity output wires mutual (nom.)
1000 pF
Cable length from device to lamp
10 m
Wire strip length
10.0-11.0 mm
Ballast contact wire cross section
0.50-2.50 mm²
Connector type
WAGO series 804
System characteristics

Rated ballast-lamp power
150 W
System power on CDO
–
Lamp power on CDO
–
Power loss on CDO
–
Rated lamp power on Son
150 W
System power on Son
160 W
Lamp power on Son
147 W
Power loss on Son
13 W
Power loss on Son while dimming
6.5 W
Temperature

T-ambient (max.)
55 °C
T-ambient (min.)
-30 °C
T storage (max.)
55 °C
T storage (min.)
-30 °C
T-case lifetime (nom.)
80 °C
T-case switch off (min.)
92 °C
Controls and dimming

Control interface
PROG
Programmable lamp settings
CPO140 SON150 CDO150
Pre-set integrated controls
Dali
Programmable dimming options
ALO CLO Dynadim Lineswitch AmpDim
Run-up time before dimming
10 min
Fade-down rate
1.2 % sec
Fade-up rate
16 % sec
Regulating level
20%-100%
Mechanical and housing

Housing
Q

Approval and application

Surge protection (common differential)
EN61547 (L-L 2kV, L-G 4kV), 10kV TIL kV
IP luminaire classification
34
Active temperature protection
Yes
EMI 9 kHz … 300 MHz
CISPR 15 ed 7.2
EMI 30 MHz … 1,000 MHz
–
Safety standard
IEC 607, 609, 926, 928  [ No Standard for HID Lamp drivers exists. Requirements in these standards to be used if considered relevant for the product.]
Quality standard
ISO 9000:2000
Environmental standard
ISO 14001
Harmonic current emission standard
IEC 61000-3-2
Vibration standard
IEC 68-2-6 Fc (10-150Hz, 2G)
Bumps standard
IEC 68-2-29 Eb (10G 16ms)
Humidity standard
EN 61347-2-12 clause 11
Approval marks

F-Marking

CE marking

ENEC certificate

VDE-EMV certificate
Humming and noise level
< 30 dB(A)
Product data

Full product code
871829166930200
Order product name
HID-DV PROG Xt 150 SON Q 208-277V
EAN UPC – product
8718291669302
Order code
66930200
Local order code
DVPROGXT150SONQ
SAP numerator – quantity per pack
1
Numerator – packs per outer box
12
SAP material
913700693666
Net Weight (Piece)
0.820 kg
