HF-R 218 PL-T C EII 220-240V 50 60Hz Cheap
27 people are viewing this right now
8 products sold in last 18 hours
Selling fast! Over 15 people have this in their carts
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200

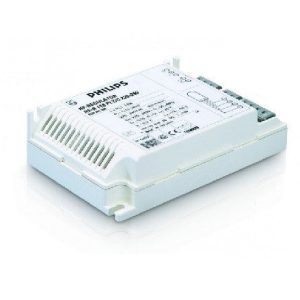

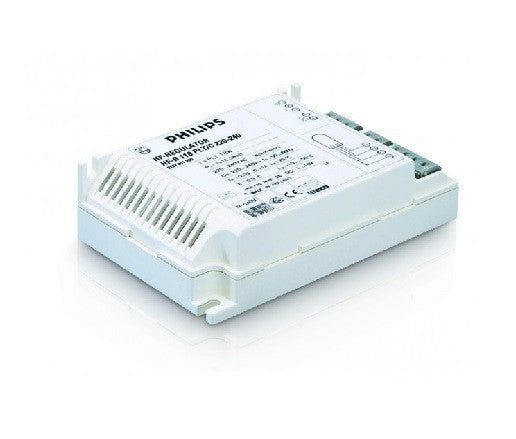

This Philips HF-R 218 PL- T C dimmable ballast runs a 2 x 18w PL-C or2 x 18w PL-T. This ballast s lamp power can be regulated from 1% to 100%, automatic stop start, automatic restart after lamp replacement, up to 75% reduction in energy consumption and quick programme flicker free start.The Philips HD-f ballasts are commonly used in offices. These units are for use with installations with emergency back up.
Specifications
- General information
-
-
Application Code
EII
Type Version
mk3
Lamp Type
PL-T C
Number of Lamps
2 piece unit
Number of Products on MCB (16A Type B) (Nom)
28
Automatic Restart
Yes
-
- Operating and electrical
-
-
Input Voltage
220 to 240 V
Input Frequency
50 to 60 Hz
Operating Frequency (Max)
100 kHz
Operating Frequency (Min)
40 kHz
Ignition Method
Programmed Start
Crestfactor (Max)
1.7
Power Factor 100% Load (Nom)
0.95
Mains Voltage Performance (AC)
-8%-+6%
Mains Voltage Safety (AC)
-10%-+10%
Earth Leakage Current (Max)
0.5 mA
Inrush Current Width
0.35 ms
Constant Wattage Deviation
-2% +2%
Ballast Factor (Nom)
1.0
Inrush Current Peak (Max)
28 A
Efficiency at full load [%]
87.26 %
-
- Wiring
-
-
Connector Type Input Terminals
Insert
Cable Capacity Output Wires Mutual (Nom)
30 pF
Connector Type Output Terminals
Insert
Connector Type Control Input Terminals
Insert
Wire Striplength
7.5-8.5 mm
Dual Fixture Master Slave
Not applicable [ Master Slave oper. not applicable]
Control Input Terminal Cross Section
0.50-1.50 mm²
Input Terminal Cross Section
0.50-1.50 mm²
Output Terminal Cross Section
0.50-1.50 mm²
Cable Capacity Output Wires to Earth (Nom)
75 pF
-
- System characteristics
-
-
Rated Ballast-Lamp Power
18 W
-
- Temperature
-
-
T-Ambient (Max)
50 °C
T-Ambient (Min)
-20 °C
T-Storage (Max)
80 °C
T-Storage (Min)
-25 °C
T-Case Lifetime (Nom)
65 °C
T-Case Maximum (Max)
75 °C
Stable Lamp Operation Temperature
Not Specified
-
- Controls and dimming
-
-
Control Interface
1-10V
Regulating Level Power
1%-100%
Control Input Protection
Yes (Basic insulation)
-
- Mechanical and housing
-
-
Housing
S 123x79x33
-
- Emergency operation
-
-
Battery Voltage Lamp Ignition
198-254 V
Battery Voltage Lamp Operation
176-254
-
- Approval and application
-
-
Energy Efficiency Index
A1 BAT
IP Classification
IP 20 [ Ingress Protection 20]
EMI 9 kHz … 30 MHz
EN55015
EMI 30 MHz … 1000 MHz
EN55022 level B
Safety Standard
IEC 61347-2-3
Performance Standard
IEC 60929
Quality Standard
ISO 9000:2000
Environmental Standard
ISO 14001
Harmonic Current Emission Standard
IEC 61000-3-2
EMC Immunity Standard
IEC 61547
Vibration Standard
IEC68-2-6 F c
Bumps Standard
IEC 68-2-29 Eb
Humidity Standard
EN 61347-2-3 clause 11
Approval Marks
CE marking
ENEC certificate
VDE-EMV certificate
Temperature Marking
Not specified
Emergency Standard
IEC 60598-2-22
Hum And Noise Level
Inaudible
-
- Product data
-
-
Full product code
871829117698500
Order product name
HF-R 218 PL-T C EII 220-240V 50 60Hz
EAN UPC – Product
8718291176985
Order code
913700680166
Numerator – Quantity Per Pack
1
Numerator – Packs per outer box
12
Material Nr. (12NC)
913700680166
Net Weight (Piece)
0.230 kg
-
