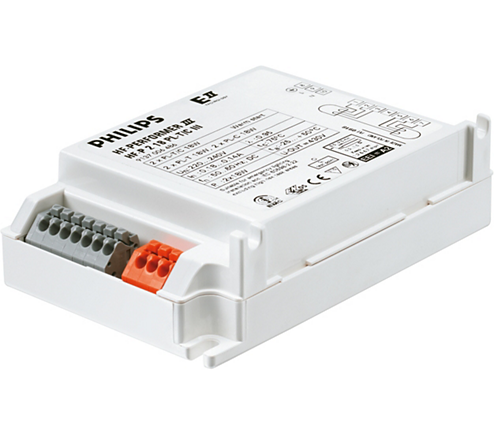

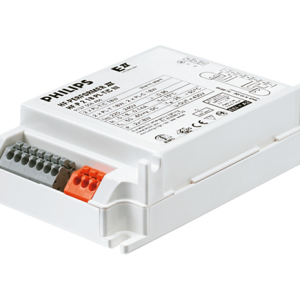

HF-P 1 2 18 PL-T C III 220-240V Single or Twin 18W PLC T Online now

View Datasheet

General Information

Application Code		III
Lamp Type		PL-T C
Number of Lamps		2 piece unit

Number of Products on MCB (16A Type B) (Nom)		28
Automatic Restart		Yes

Operating and Electrical

Input Voltage		220 to 240 V
Input Frequency		50 to 60 Hz
Operating Frequency (Max)		– kHz
Operating Frequency (Min)		42 kHz
Operating Frequency (Nom)		45 kHz
Ignition Method		Warm Start
Crestfactor (Max)		1.7
Power Factor 100% Load (Nom)		0.95
Ignition Time (Max)		0.40 s

Mains Voltage Performance (AC)		-8%-+6%
Mains Voltage Safety (AC)		-10%-+10%
Earth Leakage Current (Nom)		0.5 mA
Inrush Current Width		0.250 ms
Constant Wattage Deviation		-2% +2%
Ballast Factor (Nom)		1
Power Losses (Nom)		0.68-2.21 W
Inrush Current Peak (Max)		18 A
Efficiency at full load [%]		87.97 %
