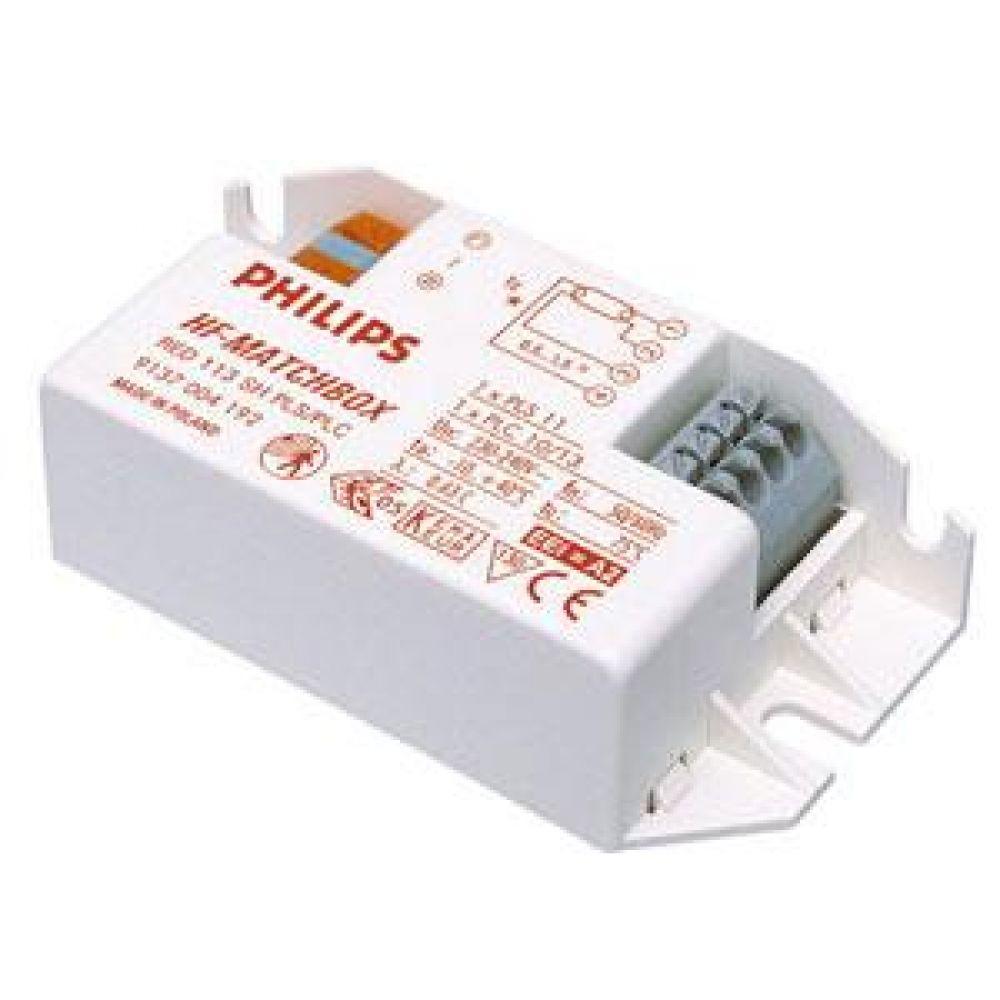

Philips Electronic HF Matchbox RED warm start Ballast multi lamp 1 X 24w 28 WTL PL-L TL5 – HFMRED124SH

Will also run a  28W 2D Lamp

Specifications

General information

Remarks
UK importer address: Signify Commercial UK Limited, 3, Guildford Business Park, GU2 8XG
Lamp type
TL TL5 PL-L
Number of lamps
1 piece unit
Number of products on MCB (16 A type B) (nom.)
48
Automatic restart
Yes
Operating and electrical

Input Voltage
230 to 240 V
Input frequency
50 to 60 Hz
Power factor 100% load (nom.)
0.61
Ignition time (max.)
0.92 s
Mains voltage performance (AC)
-8%-+6%
Mains voltage safety (AC)
-10%-+10%
Power losses (nom.)
2.9 W
Efficiency at full load [%]
87.22 %
Wiring

Connector type input terminals
Insert
Colour input terminals
Red
Colour output terminals
Grey
Connector type output terminals
Insert
Cable length from device to lamp
1.50 m
Cable length hot-wiring
0.30 m
Wire strip length
8.0-9.0 mm
Input terminal cross section
0.50-1.50 mm²
Output terminal cross section
0.50-1.50 mm²
System characteristics

Rated ballast-lamp power
24 W
Rated lamp power on PL-L
24 W
System power on PL-L
22.2 W
Lamp power on PL-L
19.3 W
Power loss on PL-L
2.9 W
Rated lamp power on TL5
24 W
System power on TL5
22.7 W
Lamp power on TL5
19.8 W
Power loss on TL5
2.9 W
Temperature

T-ambient (max.)
40 °C
T-ambient (min.)
-10 °C
T-Case maximum (max.)
75 °C
Mechanical and housing

Housing
SH

Emergency operation

Battery voltage lamp ignition
194-254 V

Approval and application

IP classification
IP 20  [ Ingress Protection 20]
Approval marks

F-Marking

CE marking

ENEC certificate

CB Certificate

Product data

Full product code
871150091040030
Order product name
HF-M RED 124 SH TL TL5 PL-L 230-240V
EAN UPC – product
8711500910400
Order code
91040030
Local order code
HFMRED124SH
SAP numerator – quantity per pack
1
Numerator – packs per outer box
50
SAP material
913700420666
Net Weight (Piece)
0.041 kg
