ELXs 121.904 1×14 21W 1×13 18W TC-DEL TEL T5 Sale
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200

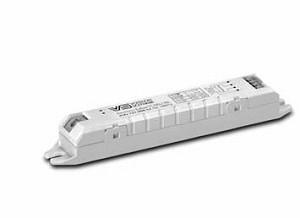

Vossloh Schwabe Electronic ballast to run 1 x 21w T5 lamps – 188664
Electronic ballast for compact fluorescent lamp and T5 lamps.
Electronic built-in ballast
Casing: heat-resistant polyamide
Power factor: approx. 0.6 (depending on the lamp output)
DC voltage operation: 198 – 264 V
Push-in terminals with push-button: 0.5 – 1.5 mm²
RFI-suppressed
For luminaires of protection class I and II
Degree of protection: IP20
Fixing slots for screws M4
For lighting systems with high switching frequency ( > 5 day)
EOL shut down approved acc. to EN 61347 Test 2
Lamp type: TC-DEL -TEL, T5
Output [W]: 13, 18 for compact fluorescent lamps TC-DEL -TEL (G24q-1 GX24q-1)
Output [W]: 14, 21 for T5 lamps (G5)
Lamp number: 1
Voltage AC [V]: 220 – 240
Frequency [Hz]: 50 – 60
Ambient temperature ( °C) –15 to 55
