Product description

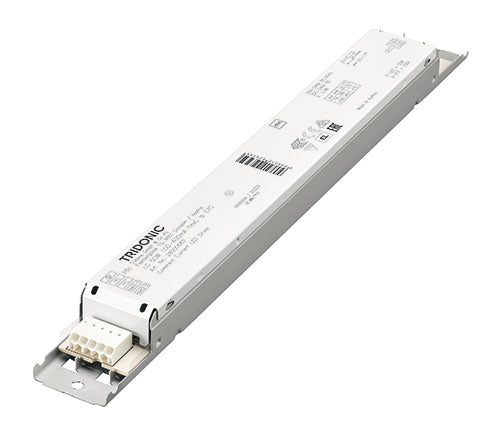

• Constant current LED driver for luminaire installation
• For luminaires of protection class I and protection class II
• Adjustable output current between 350 and 1,050 mA via ready2mains Programmer or I-SELECT 2 plugs
• Max. output power 50 W
• Up to 90 % efficiency
• Nominal lifetime up to 100,000 h
• 5 years guarantee

• Housing properties

  • Low profile metal casing with white cover
  • Type of protection IP20

  • Interfaces

    • ready2mains (configuration via mains)
    • Terminal blocks: 0° push terminals

    • Functions

      • Adjustable output current in 1-mA-steps (ready2mains, I-SELECT 2)
      • Protective features (overtemperature, short-circuit, overload, no-load, input voltage range)
      • Suitable for emergency escape lighting systems acc. to EN 50172

      • Benefits

        • Application-oriented operating window for maximum compatibility
        • Best energy savings due to high efficiency
        • Flexible configuration via ready2mains and I-SELECT 2
        • Reliability proven by lifetime up to 100,000 h and 5 years guarantee

        • Typical applications

          • For linear area lighting in office applications
