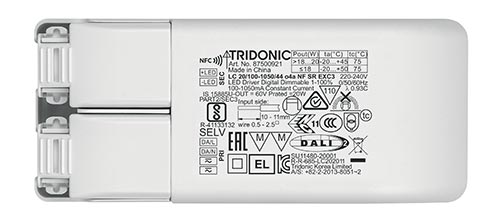

Product description

• Independent constant current LED driver
• Dimmable via DALI-2
• Dimming range 1 to 100 % (min. 5 mA)
• Output current adjustable between 100 – 1,050 mA with DALI or NFC
• Max. output power 20 W
• Up to 85 % efficiency
• Power input on stand-by < 0.4 W
• Nominal lifetime up to 100,000 h
• 5 years guarantee

• Housing properties

  • Casing: polycarbonate, white
  • Type of protection IP20
  • Toolless mounting of strain relief

  • Interfaces

    • Near field communication (NFC)
    • one4all (DALI-2 DT 6, switchDIM, corridorFUNCTION V2)

    • Functions

      • Adjustable output current in 1-mA-steps (NFC, DALI-2)
      • Constant light output function (CLO)
      • Protective features (overtemperature, short-circuit, overload, no-load)
      • Surge protection voltage 1 kV (L – N)
      • Suitable for emergency escape lighting systems acc. to EN 50172
      • For cable cross-sections up to 2.5 mm²

      • Benefits

        • Flexible configuration via companionSUITE (NFC, DALI-2)
        • Application-oriented operating window for maximum compatibility

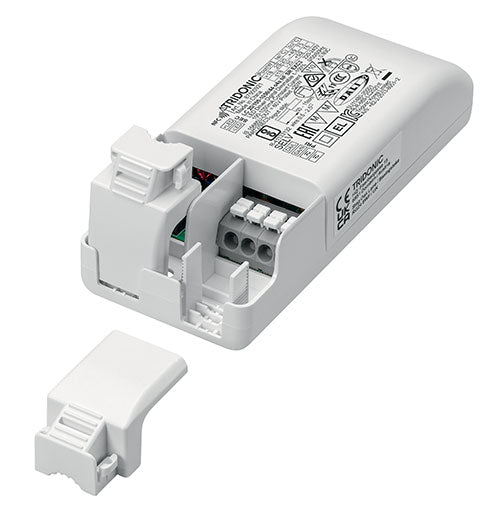

        • New strain relief concept – fast mounting and pre-assembled connection of the LED load possible

        • Typical applications

          • For applications in downlight and decorative luminaires
