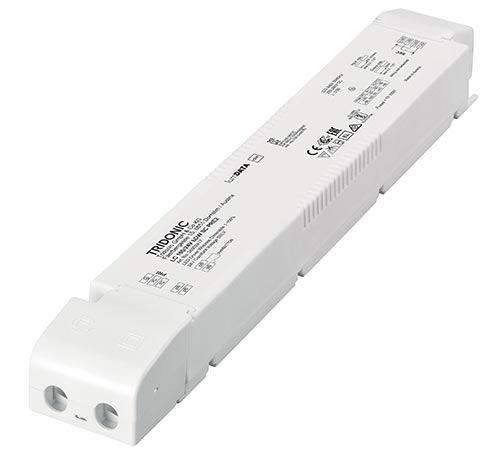

Driver LC 100W 24V bDW SC PRE2
premium series 24 V – dimmable (IP20)
-
With strain-relief
- NEW: lumDATA (Luminaire data, Energy reporting and Diagnostics & Maintenance)
- Dimmable 24 V constant voltage LED driver for flexible constant voltage strips
- Can bei either used built-in or independent with clip-on strain-relief (see data sheet chapter: 1. Standards)
- basicDIM Wireless enables different dimming options
- Forms automatically a wireless communication network with up to 250 nodes
- Dimming range 1 to 100 %
- No additional external dimmer is needed
- Suitable for emergency escape lighting systems acc. to EN 50172
- Nominal lifetime up to 50,000 h
- 5 years guarantee
-
- Cove lighting, facade accent lighting, ceiling integration
-
- 24 V, 100 W

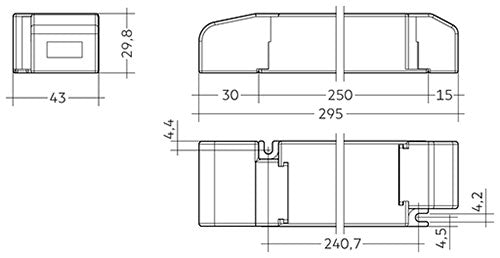

- Small design (295 x 43 x 30 mm) with stretched-compact strain relief
- Small cross section
- Push terminals for simple wiring
- Output terminals (+ –) equipped twice for more flexibility in the application
-
- basicDIM Wireless
- ready2mains (configuration via mains)
- Terminal blocks: 45° push terminals
-
- Tridonic LLE-FLEX ADV 600, 1,200, 1,800 lm m
- Tridonic LLE-FLEX EXC 600, 1,200, 1,800, 2,500 lm m
- In connection with Flex accessories wire to PCB plug
- Test the function of third party light sources before use at low dimming levels to ensure the dimming function works perfectly
-
