YCX5.0 Yuasa 12v 5.0A 8-Stage Smart Charger, Now a YCX6 Online

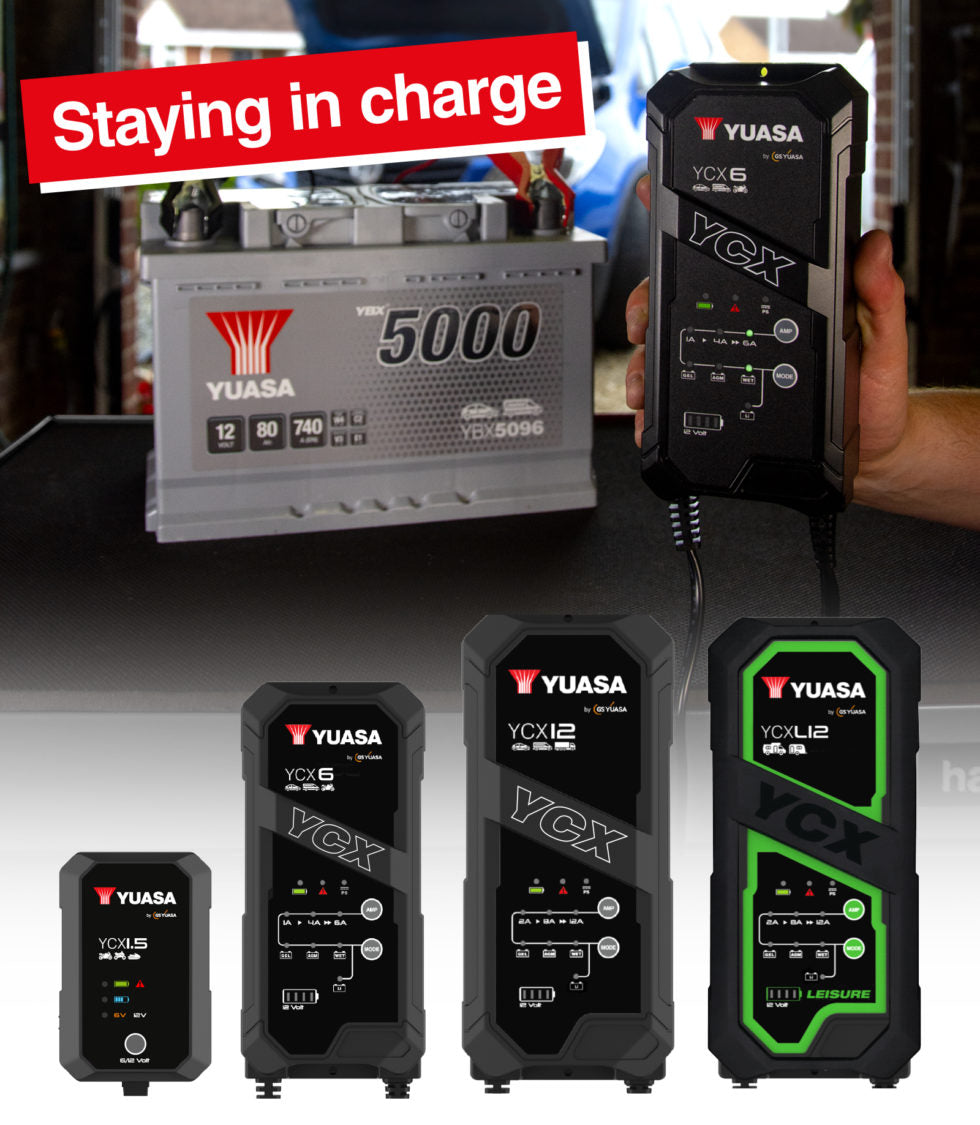

The New Version YCX6 will be sent

Voltage12VLength (mm)230Width (mm)118Height (mm)115Weight (kg)1.3Static Datasheet locationYuasa_YCX_Charger_Manual_YCX6_YCX12_v3.pdf

• Fully automatic 9 stage charging and maintenance process refined by GS Yuasa engineers for unrivalled battery care.
• Developed using GS Yuasa’s world leading battery manufacturing expertise to extend battery life, maintain performance and provide ultimate reliability.
• Trade rated charger trusted and widely used by workshops and technicians.
• Self-activating maintenance mode sustains optimum state of charge during battery storage.
• Charges batteries faster thanks to a higher power output than comparable models.
• Optimum charging performance for lead acid conventional, Start-Stop, EFB, AGM, lithium and gel battery types.
• Charge and maintain 12V batteries, even from flat. Charge up to 120Ah and maintain up to 180Ah.
• Automatic battery diagnosis with patented rejuvenation phase to break down sulphation.
• Detects and communicates charging faults caused by battery problems.
• The only vehicle battery charger you will ever need, with selectable power output levels to cover the widest range of battery capacities.
• Automatic maintenance with power saving eco mode sustains optimum state of charge during battery storage.
• Enhanced safety features, including short circuit, overcharging and reverse polarity protection for ultimate peace of mind.*
• Durable splashproof (IP44) construction with robust integrated clamp and eyelet connectors.
• Easy to use with simple navigation buttons and clear LED indicators.

• *Power supply mode does not offer reverse polarity protection







  Yuasa Smart Chargers give your battery a longer and more powerful life.
  Advanced, Fully automatic charging in 8 stages.

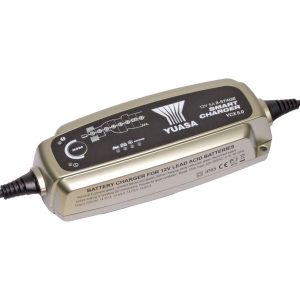

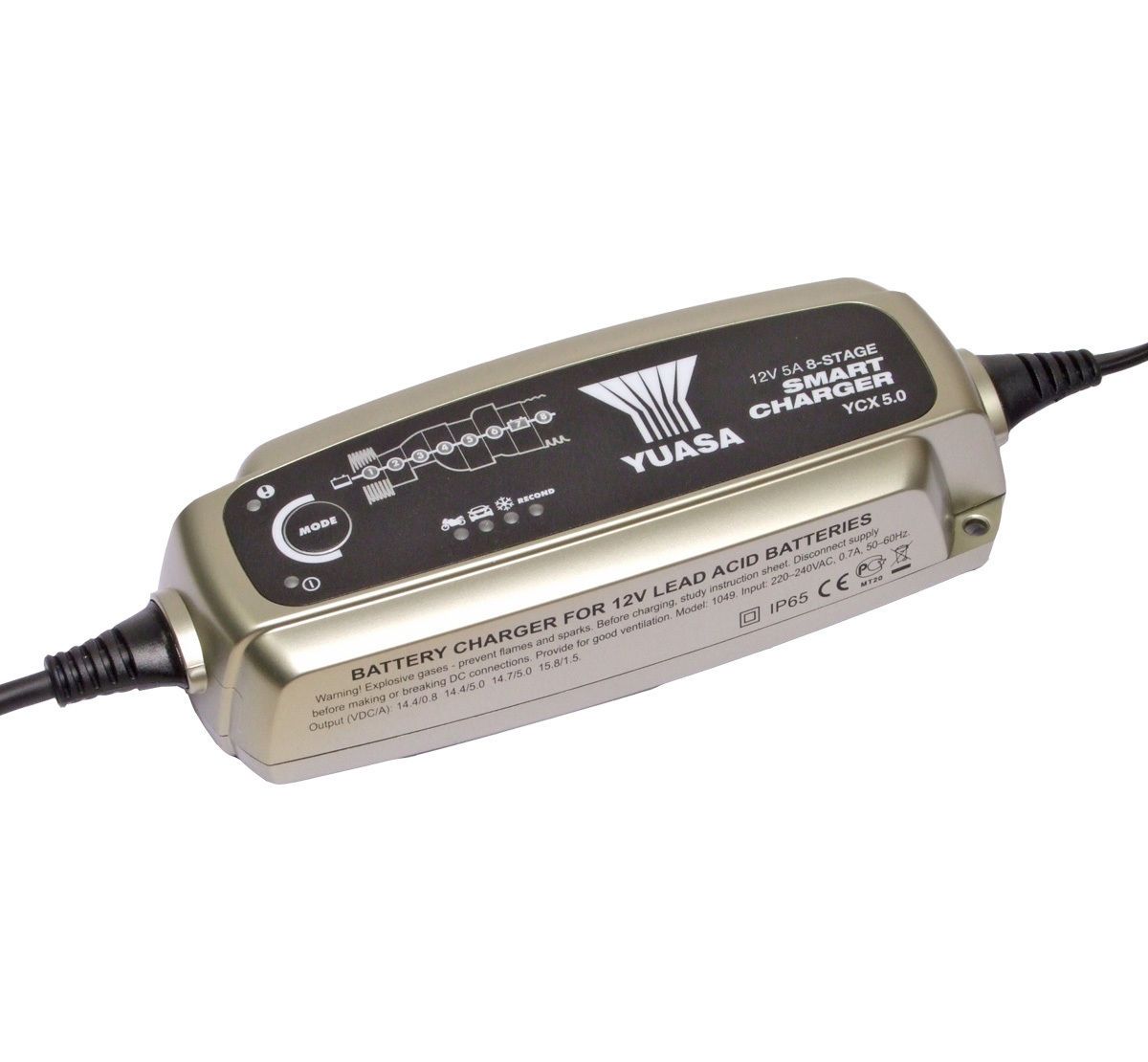

  12v 5.0A 6-Stage Smart Charger YCX5.0
  -Safe and easy to use
  -Connect and forget
  -Unique 8-stage charging
  Included :
  Cable connector – Crocadile clip lead
  Cable connector – Eyelet lead
  Input Voltage : 220-240VAC, 50-60Hz – 3 pin UK plug
  Charging Voltage : 14.4VDC
  Charging Current : 0.8A 5.0A MAX
  Ambient Temprature : -20 degrees C to + 50 degrees C
  Type of charger : 8-Stage fully automatic charging
  Type of Battery charged : 12v Lead Acid Batteries – Wet GEL AGM Ca Ca
  Recommended Battery Size:
  Charging : 1.2Ah – 110Ah Batteries
  Maintenance charging : 1.2 – 160Ah batteries
  Designed for saftey
  Does not damage sensitive electronics
  Spark proof, reverse-polarity protection and short circuit proof.
  Uniquie 8-Stage Charging program
  1 – Desulphation
  2 – Soft Start
  3- Bulk
  4 – Absorption – Ready to use
  5 – Analyse
  6 – Recond
  7 – Float – Fully charged
  8 – Pulse – Maintenance charging
