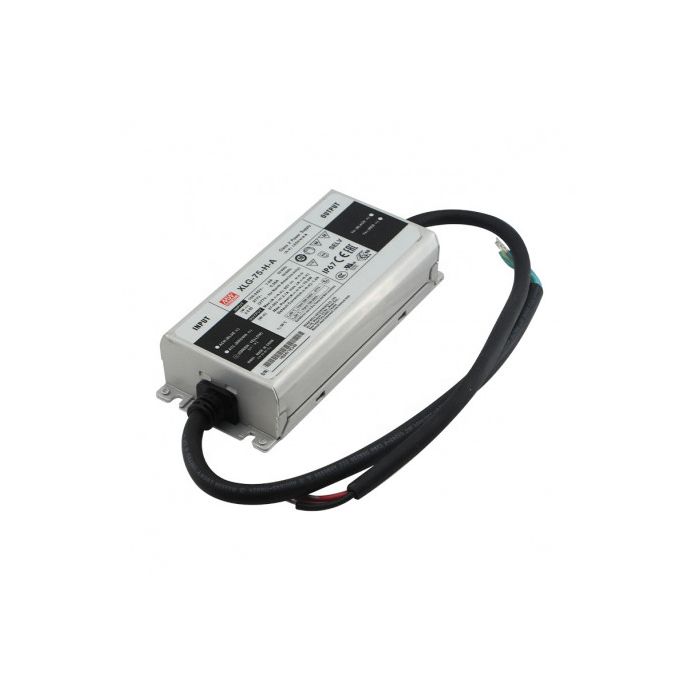

XLG-75-H – Mean Well XLG-75-H LED Driver 75W 1400mA Constant Power Mode Hot on Sale

XLG-75-H is a 75W, 1300~2100mA constant power mode LED driver. Designed for use in a wide range of applications where flexibility is required. The all metal case is IP67 rated for outdoor use. Mean Well XLG-75-H is compact and has a 5 year warranty.
Key Features:

1300~2100mA constant power mode
IP67 Rated
Compact metal housing
5 Year warranty
Protection functions: OVP SCP OCP OTP
More Information

Manufacturer
Mean Well

Output Wattage (W)
75

Output Current
Selectable

Dimmable (Type)
No

Output Voltage Range (V)
27-56V

Dimensions
140 x 63 x 32 mm

EMC Standards
EN55015(CISPR15) ,GB T17743, EN61000-3-2 , GB T17625.1, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11

Input Voltage
100-305VAC, 142-431VDC

Safety Standards
UL8750(type HL ), UL879, CSA C22.2 No. 250.13-12; ENEC EN61347-1, EN61347-2-13 independent, EN62384; GB19510.1 , GB19510.14; EAC TP TC 004;IS15885(Part2 Sec13)(for XLG-75I type only); IP67 approved

Output Voltage Options
Single

Working Temperature
-20 ~ +95C

PDF Datasheet
XLG-75-H.PDF
