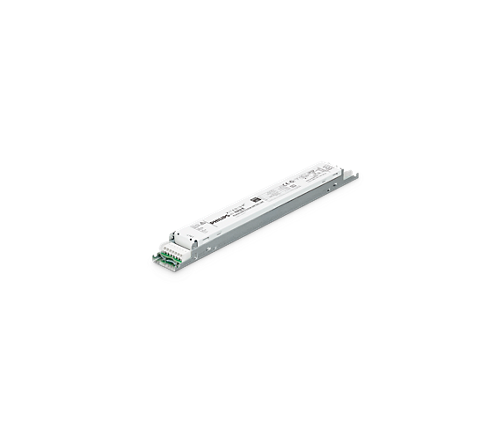

XITANIUM 35W 0.08-0.35A 220V TD21 230V Online now
23 people are viewing this right now
17 products sold in last 5 hours
Selling fast! Over 13 people have this in their carts
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Specifications
- General information
-
-
Protection class IEC
Safety class I
Constant light output
Programmable
Nominal Lifetime (Nom)
100000 h
Number of Products on MCB (16A Type-C) (Max)
22 piece unit
-
- Operating and electrical
-
-
Input Frequency
50 to 60 Hz
Mains voltage operation (DC)
168-275 V
Total Harmonic Distortion IEC (Max)
20 %
Output Current Ripple (Max)
4 %
Maximum Efficiency at Full Load
91.2 %
Output Current (Max)
350 mA
Output Current Tolerance (Max)
5 %
Mains voltage performance (DC)
186-250 V
Standby Power Consumption (Max)
0.33 W
Power Factor (Min)
0.9
Open Circuit Voltage (DC) (Max)
250 V
Protection Level Up (L-N) at 5 kA (Max)
1 kV
Protection Level Up (LN-Earth) at 5 kA (Max)
2 kV
Input current (AC)
0.18 mA
Input current (DC)
0.22
Inrush Current Peak (Max)
23.1 A
Output Power (Max)
35 W
Default output current
80 mA
Inrush Current Width to 50% of Peak
221 µs
Power Factor 100% Load (Max)
0.9
Energy Metering
No
Constant Current (CC)
True
Constant Voltage (CV)
False
Diagnostics
True
Output Power (Min)
10 W
Output Current (Min)
80 mA
Output Voltage (Max)
220 V
Output Voltage (Min)
50 V
-
- Wiring
-
-
Connector Type Input Terminals
Wago 744
Hot Wiring
no
Connector Type Output Terminals
Wago 744
Output Wire Cross Section (Max)
1.5 mm²
Output Wire Cross Section (Min)
0.5 mm²
Cable Length From Device to Lamp
2 m
Input Wire Gauge
16-20
Input wire strip length
8 mm to 9 mm
Output wire strip length
8 mm to 9 mm
Input Wire Cross Section (Max)
1.5 mm²
Input Wire Cross Section (Min)
0.5 mm²
-
- System characteristics
-
-
Central DC Operation
Yes
YellowDot ready
No
-
- Temperature
-
-
T-Ambient (Max)
50 °C
T-Ambient (Min)
-25 °C
T-Case Lifetime (Max)
65 °C
T-Case Maximum (Max)
75 °C
Module Temperature Protection
no
Maximum case temperature (in case of failure)
110 °C
-
- Controls and dimming
-
-
Dimmable
DALI
Dimming Range
100-1 %
D4i compliant
No
DynaDimmer
No
-
- Mechanical and housing
-
-
Product Length
280 mm
Housing
Office 280x30x21 7p4p
Housing Dimensions
280 x 30 x 21
Overall length
280 mm
Overall width
30 mm
Overall height
21 mm
-
- Approval and application
-
-
IP Classification
IP 20 [ Ingress Protection 20]
Isolation Classification
No
Short Circuit Protection
Protected
Over Power Protection
Protected
Open Circuit Protection
Protected
Approval Marks
CCC certificate
CE marking
ENEC certificate
RCM compliance
REACH compliance
RoHS compliance
Corridor Mode
True
Output Current Set Options
LEDset,Programmable
-
- Product data
-
-
Full product code
871869965373600
Order product name
XITANIUM 35W 0.08-0.35A 220V TD21 230V
EAN UPC – Product
8718699653736
Order code
929001681706
Numerator – Quantity Per Pack
1
Numerator – Packs per outer box
24
Material Nr. (12NC)
929001681706
Net Weight (Piece)
0.200 kg
-
Title
Default Title
