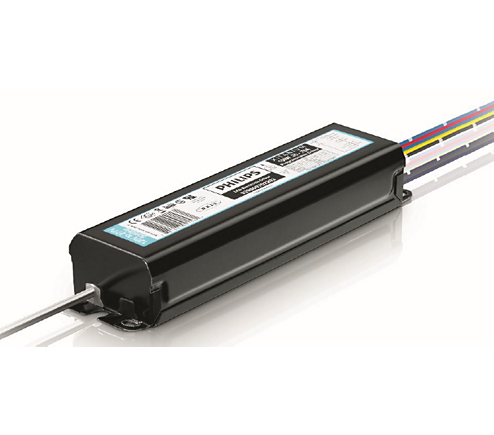

Xitanium 150W 0.35-0.7A Prog GL sXt 929000702202 For Discount
28 people are viewing this right now
19 products sold in last 16 hours
Selling fast! 1 person has this in their cart
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Specifications
- General Information
-
-
Constant light output
Programmable
Number of Products on MCB (16A Type B) (Max)
7
-
- Operating and Electrical
-
-
Input Frequency
50 to 60 Hz
Total Harmonic Distortion IEC (Max)
20 %
Output Current Ripple (Nom)
30 %
Maximum Efficiency
93 %
Power Factor 100% Load (Min)
0.97
Output Current (Max)
700 mA
Output Current (Nom)
Programmable (350-700) mA
Output Current Tolerance (Max)
5 %
Output Current Tolerance (Min)
-5 %
Input Voltage (AC)
120-277 V
Power Factor 50% Load (Min)
0.94
Earth Leakage Current (Max)
0.7 mA
Input Current (Max)
700 mA
Input Power (Nom)
165 W
Inrush Current Peak (Max)
108 A
Output Power (Nom)
30-150 W
Output Voltage
125-280 V
Inrush Current Width to 50% of Peak
140 µs
Output Current (Min)
50 mA
Output Voltage (Max)
280 V
Output Voltage (Min)
125 V
-
- Wiring
-
-
Control Wire Length
500 mm
Output Wire Length
500 mm
Control Wire Cross Section (Nom)
0.82 mm²
Output Wire Cross Section (Nom)
0.82 mm²
Input Wire Cross Section (Nom)
0.82 mm²
-
- Temperature
-
-
T-Ambient (Max)
55 °C
T-Ambient (Min)
-40 °C
T-Case Lifetime (Nom)
71 °C
T-Case Maximum (Max)
80 °C
- General Information
-
Constant light output ProgrammableNumber of Products on MCB (16A Type B) (Max) 7
- Operating and Electrical
Input Frequency 50 to 60 HzTotal Harmonic Distortion IEC (Max) 20 %Output Current Ripple (Nom) 30 %Maximum Efficiency 93 %Power Factor 100% Load (Min) 0.97Output Current (Max) 700 mAOutput Current (Nom) Programmable (350-700) mAOutput Current Tolerance (Max) 5 %Output Current Tolerance (Min) -5 %Input Voltage (AC) 120-277 VPower Factor 50% Load (Min) 0.94Earth Leakage Current (Max) 0.7 mAInput Current (Max) 700 mAInput Power (Nom) 165 WInrush Current Peak (Max) 108 AOutput Power (Nom) 30-150 WOutput Voltage 125-280 VInrush Current Width to 50% of Peak 140 µsOutput Current (Min) 50 mAOutput Voltage (Max) 280 VOutput Voltage (Min) 125 V- Wiring
Control Wire Length 500 mmOutput Wire Length 500 mmControl Wire Cross Section (Nom) 0.82 mm²Output Wire Cross Section (Nom) 0.82 mm²Input Wire Cross Section (Nom) 0.82 mm²- Temperature
T-Ambient (Max) 55 °CT-Ambient (Min) -40 °CT-Case Lifetime (Nom) 71 °CT-Case Maximum (Max) 80 °C
