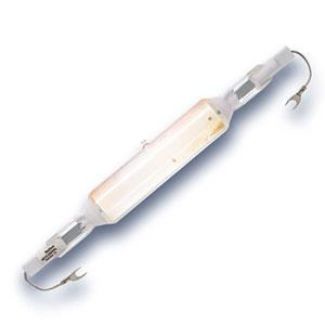

Venture MH-TS 2000W L K12 4K 84203 Online Hot Sale

84203

Description: MH-TS 2000W L K12 45K Performance Data Rated Light Output (Lumens @ 100 hours) 240000 Lamp Lumens per Watt (100hrs) 112 Rated Life (Hrs @ 10Hr. Start) 5000 Correlated Colour Temperature (K) 4500 Chromaticity (CIE – X Y) 360,365 Colour Rendering Index (CRI) or (Ra) 68 Typical Warm Up Time (Minutes) 3-5 Typical Hot Restart Time (Minutes) 10-15 Energy Rating (ErP) A+ 2200 kWh 1000h Physical Data Base Designation Cable Lug Bulb Designation T29 (T9 USA) Bulb Diameter (mm) 29 Max. Overall Length (mm) 270 Effective Arc Length (mm) 138 Max. Base Temperature (°C) 350 Max. Bulb Temperature (°C) 950 Socket Pulse Rating (KV) 6 Mercury Content (mg) 133.0 Lamp Electrical Data Nominal Lamp Wattage (W) 2150 Lamp Operating Voltage (V) 220 Lamp Operating Current (A) 10.3 Min. Open Circuit Voltage (RMS) 340 Min. Starting Pulse (Peak V) 5000-6000 Min. Pulse Width (Microseconds) 1 @4500V Min. Pulse Rate Per ½ cycle 1 Pulse Position (Electrical Degrees) 60-90, 240-270 ENERG Y IJA IE IA A++ A+ A B C D E A+ 2200 kW 1000h Venture Lighting 84203 Lumen Maintenance (Light Output vs. Rated Life) L
