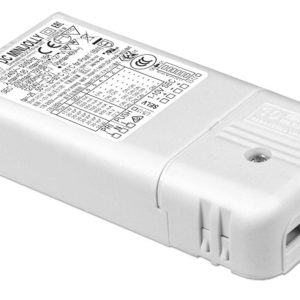

TCI MINIJOLLY 20W LED Driver 1-10V dimmable, Multi Current 250-900Ma
Dimming:
1-10V – 0-10V
PUSH (on the Mains)
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV <>
DIMMING: AM + PWM (MIXED) IEEE1789-2015
DIMMING: PWM
WIDE RANGE INPUT VOLTAGE
Suitable for Household and similar electrical appliances
Approvals:
ENEC
UL (class 2)
RCM
CE
EAC
UKCA
Plastic case:
IP 20 (Independent Use)
Minimum cut-out hole diameter:
55 mm

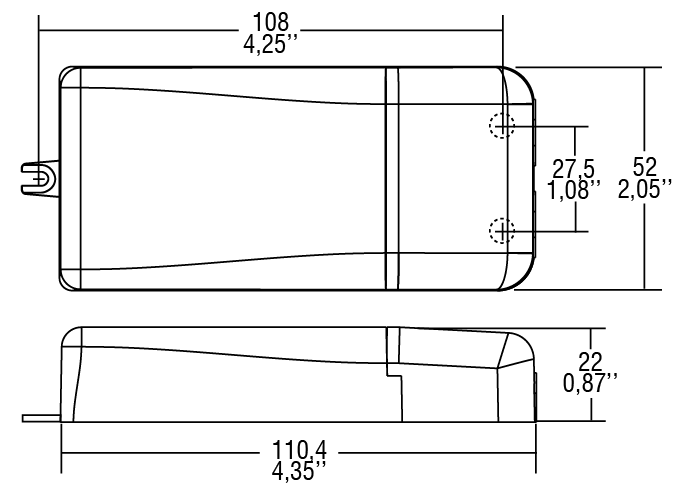

Size:
111 x 22 x 52 mm
urrent
250 mA
220-240 V = Output power
13 W
110-127 V =
13 W
Current
300 mA
220-240 V = Output power
15 W
110-127 V =
15 W
Current
350 mA
220-240 V = Output power
18 W
110-127 V =
15 W
Current
400 mA
220-240 V = Output power
20 W
110-127 V =
15 W
Current
450 mA
220-240 V = Output power
20 W
110-127 V =
15 W
Current
500 mA
220-240 V = Output power
20 W
110-127 V =
15 W
Current
550 mA
220-240 V = Output power
20 W
110-127 V =
15 W
Current
600 mA
220-240 V = Output power
20 W
110-127 V =
15 W
Current
650 mA
220-240 V = Output power
20 W
110-127 V =
15 W
Current
700 mA
220-240 V = Output power
20 W
110-127 V =
15 W
Current
750 mA
220-240 V = Output power
20 W
110-127 V =
15 W
Current
850 mA
220-240 V = Output power
20 W
110-127 V =
15 W
Current
900 mA
220-240 V = Output power
20 W
110-127 V =
15 W
