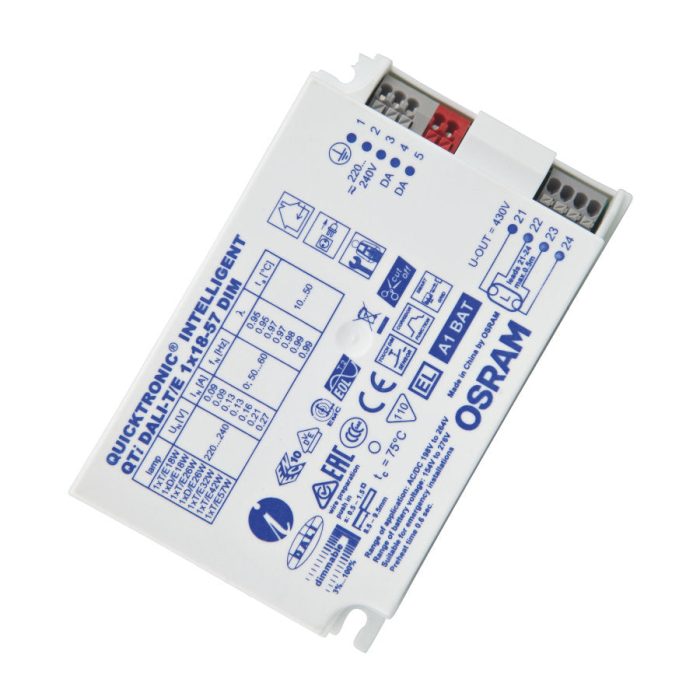

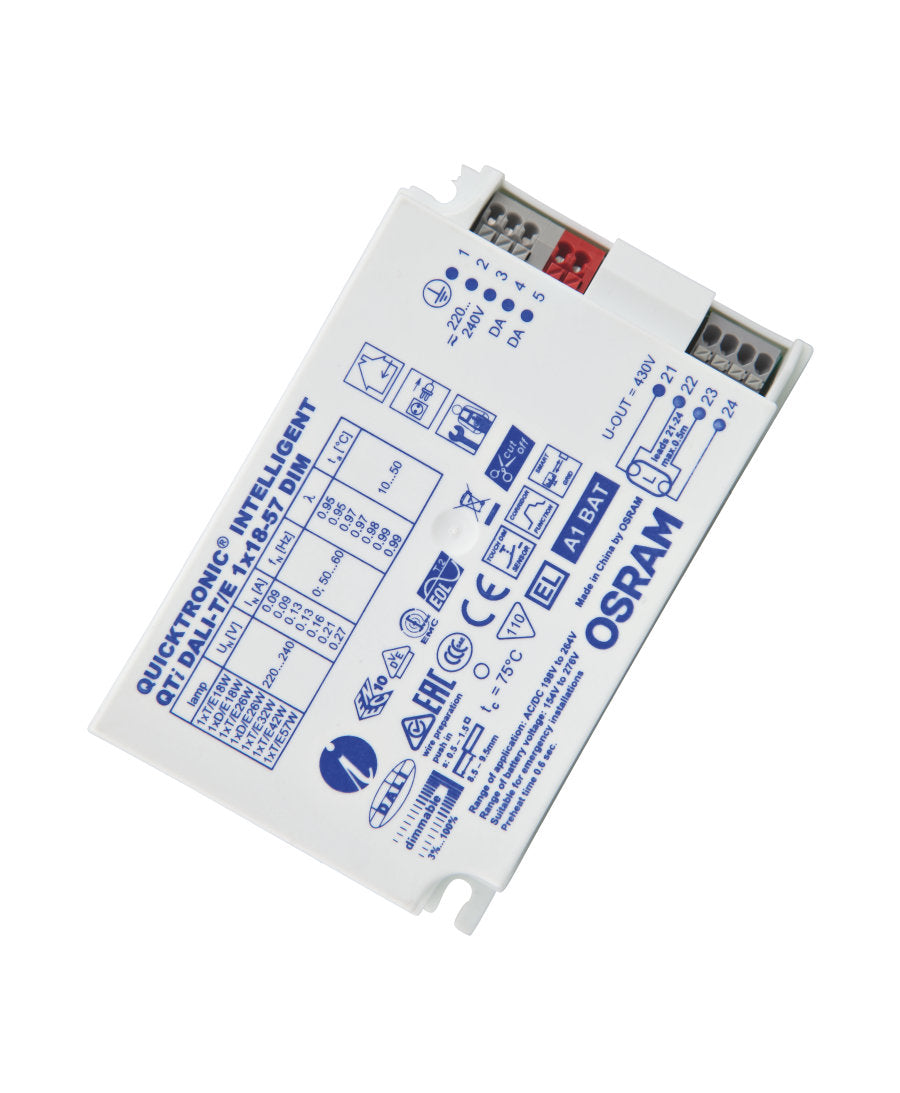

QTI DAli-TE 1 X18-57 Dim 4008321060808 Online

$40

20 people are viewing this right now
5 products sold in last 17 hours
Selling fast! Over 9 people have this in their carts
  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping & Returns : On all orders over $200
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout

123x79x33mm



Multi Wattage dali dimmable

1) At T case = 65°C at T c point 10% failure rate Product name Lamp group QTi DALI-T E 1×18…57 DIM DULUX D E 26 W ECG ambient temperature [ta] 40 50 60 Temperature at tc-point [°C] 55 65 75 Lifetime [h] 100000 100000 90000 DULUX L 24 W ECG ambient temperature [ta] 40 50 60 Temperature at tc-point [°C] 55 65 75 Lifetime [h] 100000 100000 90000 DULUX L 40 W ECG ambient temperature [ta] 40 50 60 Temperature at tc-point [°C] 55 65 75 Lifetime [h] 100000 100000 90000 DULUX T E 18 W ECG ambient temperature [ta] 40 50 60 Temperature at tc-point [°C] 50 60 70 Lifetime [h] 100000 100000 100000 DULUX T E 32 W ECG ambient temperature [ta] 40 50 60 Temperature at tc-point [°C] 55 65 75 Lifetime [h] 100000 100000 90000 DULUX T E 32 W CONSTANT ECG ambient temperature [ta] 40 50 60 Temperature at tc-point [°C] 55 65 75 Lifetime [h] 100000 100000 90000 DULUX T E 42 W ECG ambient temperature [ta] 40 50 60 Temperature at tc-point [°C] 55 65 75 Lifetime [h] 100000 100000 90000 DULUx T E 42 W CONSTANT ECG ambient temperature [ta] 40 50 60 Temperature at tc-point [°C] 55 65 75 Lifetime [h] 100000 100000 90000 FC 22 W ECG ambient temperature [ta] 40 50 60 Temperature at tc-point [°C] 55 65 75 Lifetime [h] 100000 100000 90000 FC 40 W ECG ambient temperature [ta] 40 50 60 Temperature at tc-point [°C] 55 65 75 Lifetime [h] 100000 100000 9000

Technical Data

Electrical data

Nominal voltage

220…240 V

Mains frequency

50…60 Hz

Input voltage DC

154…276 V

Operating frequency

42…130 kHz

Max. ECG no. on circuit breaker 10 A (B)

12

Max. ECG no. on circuit breaker 16 A (B)

19

Inrush current

30 A

Light technical data

Starting time

0.6 s

Dimensions & weight

Length

123.0 mm

Width

79.0 mm

Height

33.0 mm

Mounting hole spacing, length

129.5 mm

Mounting hole spacing, width

67.0 mm

Product weight

227.00 g

Cable cross-section, input side

0.5…1.5 mm²

Temperatures & operating conditions

Ambient temperature range

+10…+50 °C

Permitted rel. humidity during operation

5…85 %

Lifespan

ECG lifetime

100000 h

Additional product data

Product remark

Optional cable clamp, see chapter ECG mountings – cable clamp

Suitable for lamp power (1 lamp)

18…57 W

Capabilities

Dimming interface

DALI Touch DIM Touch DIM Sensor

Dimming range

3…100 %

Dimmable

Yes

Overheating protection

Yes

End of lamp life safety shutdown

EOL T.2

Suitable for fixtures with prot. class

I

Max. cable length to lamp LED module

0.5 m

Certificates & standards

Approval marks – approval

VDE VDE-EMC EL EAC RCM CCC

Standards

Acc. to EN 61347-2-3 Acc. to EN 60929 Acc. to EN 55015:2006 + A1:2007 Acc. to EN 61000-3-2 Acc. to EN 61547 Acc. to IEC 62386-101:Ed1 Acc. to IEC 62386-102:Ed1
