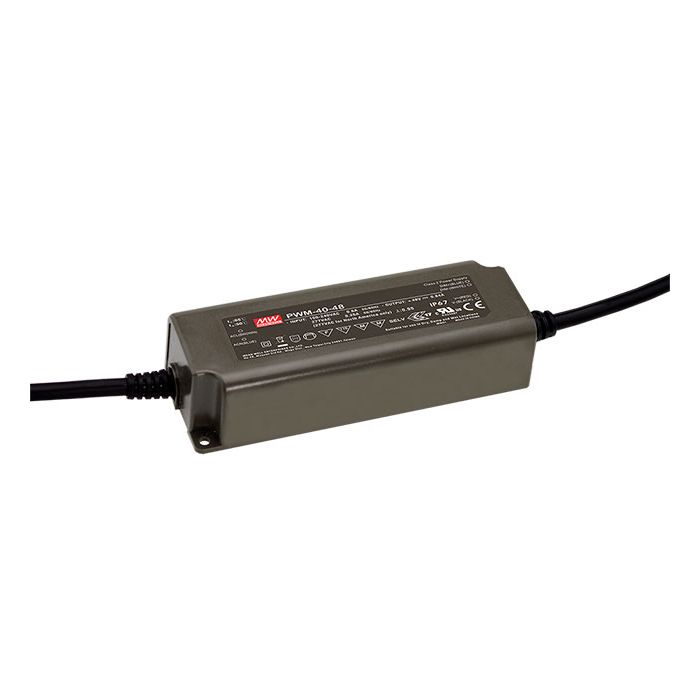

PWM-40-S – Mean Well PWM-40 Series LED Driver 40W, 12V – 48V Supply
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Universal AC input Full range (up to 305VAC)Built-in active PFC functionConstant voltage PWM style outputBuilt-in 3 in 1 dimming function (0-10Vdc or PWM signal or resistance)Dimming range : 0 – 100%High efficiency up to 90%Protections: Short circuit Over load Over voltage Over temperatureClass II power unit, no FGClass 2 power unitSuitable for dry damp wet locationsNo load power consumption <0.5W5 years warranty
More Information
Output Wattage (W)
40
Output Voltage
Choose Option
Dimensions
150x 53x 35mm
EMC Standards
Compliance to EN55015, EN61000-3-2 Class C (>60% load) ; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge L-N: 2KV), criteria A
Safety Standards
UL8750, CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384 independent, IP67 approved.
Output Voltage Options
Single
Working Temperature
-10°C~+60°C
PDF Datasheet
PWM-40-SPEC_3.PDF
