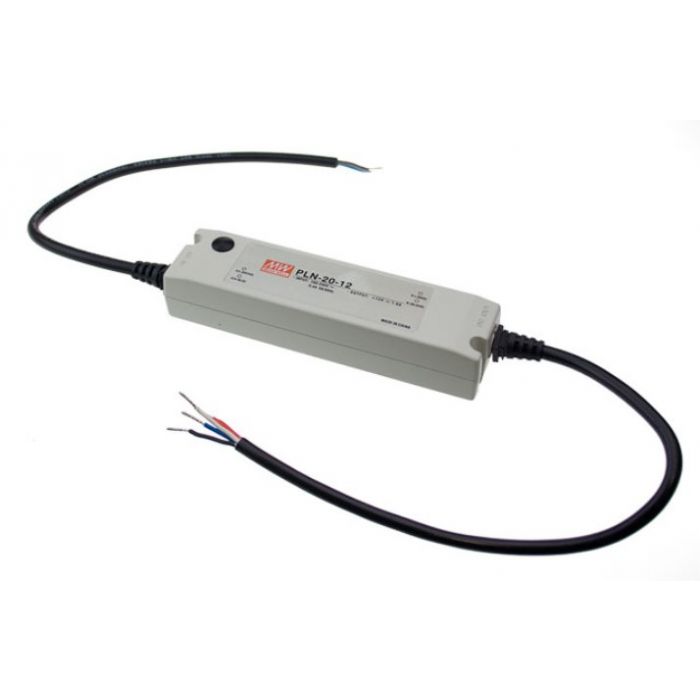

PLN-20-S – Mean Well PLN-20 Series LED Driver 20W 12V – 48V Online Sale
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Built-in constant current limiting circuit (C.V. + C.C. mode)Fully isolated plastic case with IP64 levelProtections: Short circuit Overload Over voltage Over temperatureOther features: Universal AC input Full RangeBuilt-in active PFC function, PF>0.9 for 75% of load or higherClass 2 power unit Pass LPSIsolation class II, no F.G.Current protection levelCooling by free air convection2 years warranty
More Information
Output Wattage (W)
20
Output Voltage
Choose Option
Dimensions
148.5 x 38.5 x 28
EMC Standards
EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11
Input Voltage
90~277VAC
Safety Standards
UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13
Output Voltage Options
Single
Working Temperature
-20~+70°C
PDF Datasheet
PLN-20-SPEC.PDF
| Title | Default Title |
|---|
