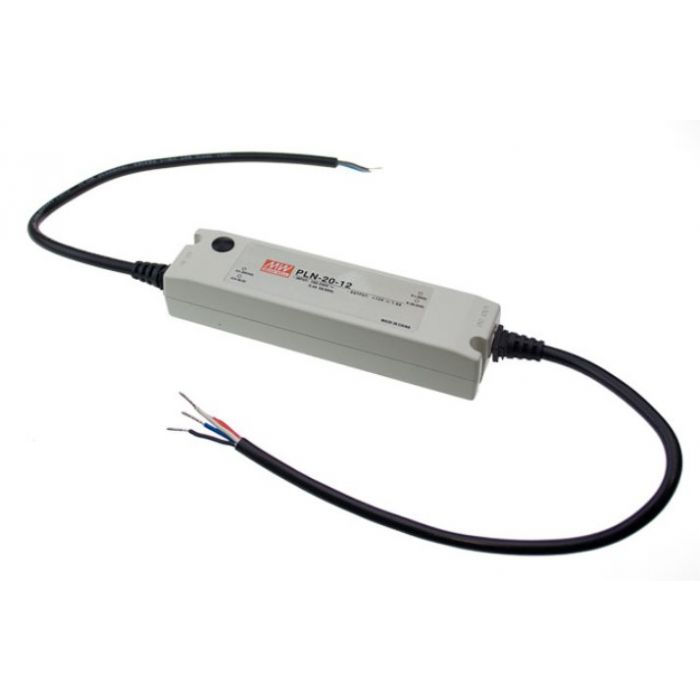

PLN-20-12 – Mean Well LED Driver PLN-20-12 20W 12V Online Hot Sale

Built-in constant current limiting circuit (C.V. + C.C. mode)Fully isolated plastic case with IP64 levelProtections: Short circuit Overload Over voltage Over temperatureOther features: Universal AC input Full RangeBuilt-in active PFC function, PF>0.9 for 75% of load or higherClass 2 power unit Pass LPSIsolation class II, no F.G.Current protection levelCooling by free air convection2 years warranty
More Information

Manufacturer
Mean Well

Output Wattage (W)
20

Output Voltage
12V

Dimmable (Type)
No

DC Output Adjustment
N A

Dimensions
148.5 x 38.5 x 28

EMC Standards
EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11

Input Voltage
90~277VAC

Safety Standards
UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13

Output Voltage Options
Single

Working Temperature
-30~+70°C

PDF Datasheet
PLN-20-SPEC.PDF
