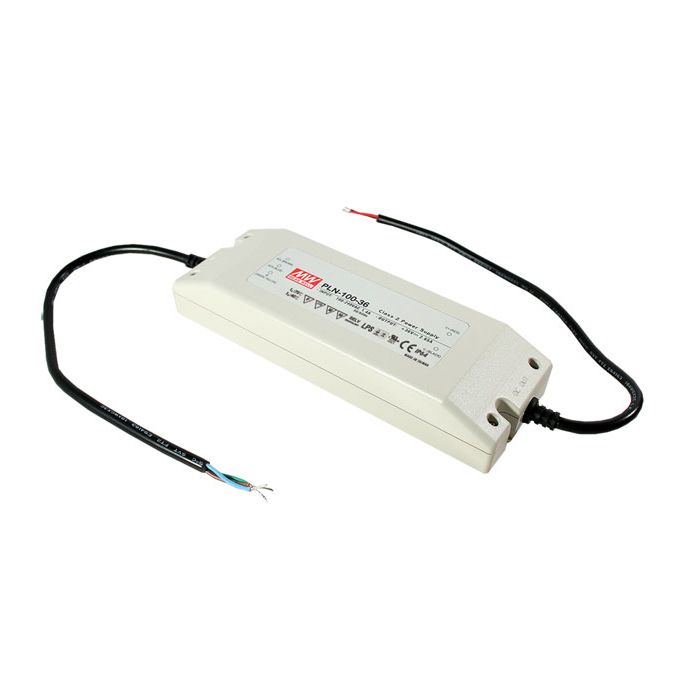

PLN-100-S – Mean Well PLN-100 Series LED Driver 100W 12V – 48V on Sale
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Built-in constant current limiting circuit (C.V. + C.C. mode)Fully isolated plastic case with IP64 levelProtections: Short circuit Overload Over voltage Over temperatureOther features: Universal AC input Full RangeBuilt-in active PFC function, PF>0.9 for 75% of load or higherClass 2 power unit Pass LPSIsolation class II, no F.G.User adjustable output voltage and current protection levelCooling by free air convection2 years warranty
More Information
Output Wattage (W)
100
Output Voltage
Choose Option
DC Output Adjustment
85%~100% rated output voltage
Dimensions
200 x 70.5 x 35
EMC Standards
EN55015, EN55022 class B, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11
Input Voltage
90~295VAC, 127~417VDC
Safety Standards
UL8750, UL1310, UL8750, TUV EN61347-1, EN61347-2-13, EN60950-1, PSE J61347-1, J61347-2-13
Output Voltage Options
Single
Working Temperature
-30~+70°C
PDF Datasheet
PLN-100-SPEC.PDF
