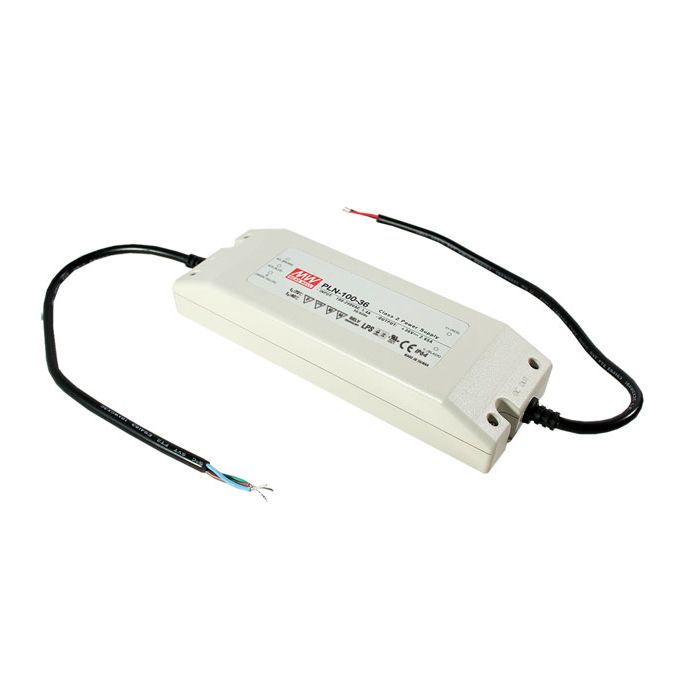

PLN-100-36 – Mean Well LED Driver PLN-100-36 100W 36V Fashion

Built-in constant current limiting circuit (C.V. + C.C. mode)Fully isolated plastic case with IP64 levelProtections: Short circuit Overload Over voltage Over temperatureOther features: Universal AC input Full RangeBuilt-in active PFC function, PF>0.9 for 75% of load or higherClass 2 power unit Pass LPSIsolation class II, no F.G.User adjustable output voltage and current protection levelCooling by free air convection2 years warranty
More Information

Manufacturer
Mean Well

Output Wattage (W)
100

Output Voltage
36V

DC Output Adjustment
85%~100% rated output voltage

Dimensions
200 x 70.5 x 35

EMC Standards
EN55015, EN55022 class B, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11

Input Voltage
90~295VAC, 127~417VDC

Safety Standards
UL8750, UL1310, UL8750, TUV EN61347-1, EN61347-2-13, EN60950-1, PSE J61347-1, J61347-2-13

Output Voltage Options
Single

Working Temperature
-30~+70°C

PDF Datasheet
PLN-100-SPEC.PDF
