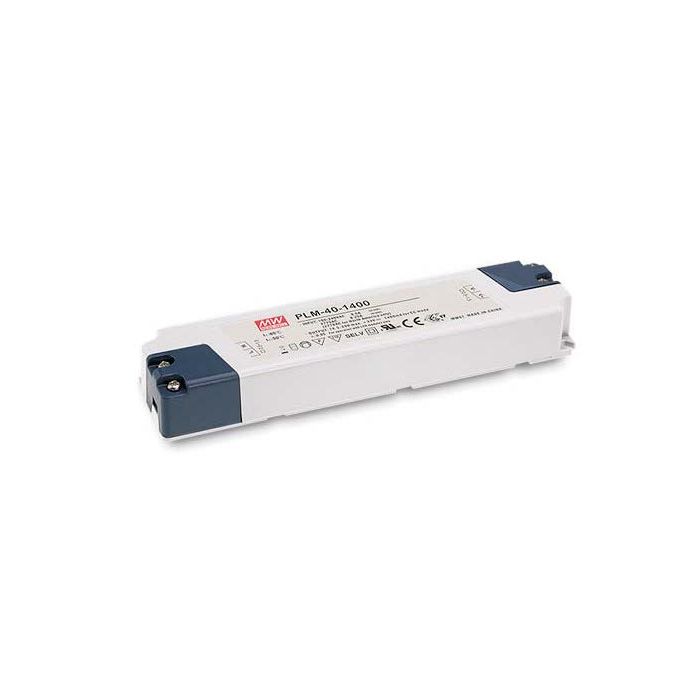

PLM-40S – Mean Well PLM-40 Series LED Driver 37W – 41W 350mA – 1750mA on Sale

Constant current designThree-step analogue dimmingProtections: Short circuit Over temperatureOther features:Universal AC input (up to 295VAC) Full rangeBuilt-in active PFC functionNo load power consumption <0.5WCooling by free air convectionIP30 designFully isolated plastic caseClass II power unit, no FG100% full load burn-in testHigh reliability, low costSuitable for indoor LED lighting applications2 years warranty
More Information

Manufacturer

Mean Well

Output Wattage (W)

39

Output Current

Choose Option

Dimmable (Type)

No

Output Voltage Range (V)

28~55

Dimensions

175x 42x 24

EMC Standards

Compliance to EN55015, EN61000-3-2 Class C; EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547, light industry level (surge 2KV), criteria B

Input Voltage

90~295VAC 127~417VDC

Safety Standards

UL8750, CSA C22.2 No.250. 13-12 (for PLM-40-1400 1750), ENEC EN61347-1, EN61347-2-13, EN61347-2-13, EN62384, IP30 approved

Output Voltage Options

Single

Working Temperature

-30~+60°C

PDF Datasheet

PLM-40-spec.pdf
