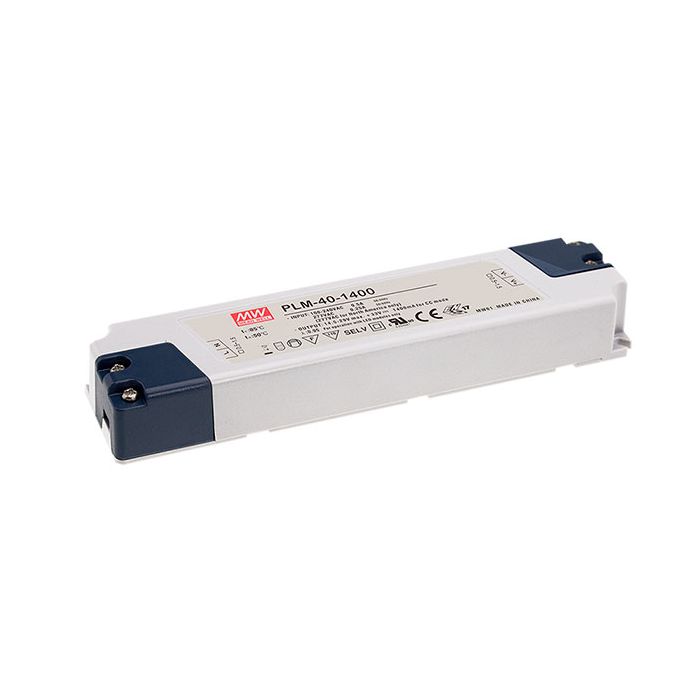

PLM-40E-1400 – Mean Well LED Driver PLM-40E-1400 40.6W 1400mA For Discount

Constant current designThree-step analogue dimmingProtections: Short circuit Over temperatureOther features:Universal AC input (up to 295VAC) Full rangeBuilt-in active PFC functionNo load power consumption <0.5WCooling by free air convectionIP30 designFully isolated plastic caseClass II power unit, no FG100% full load burn-in testHigh reliability, low costSuitable for indoor LED lighting applications2 years warranty
More Information

Manufacturer
Mean Well

Output Wattage (W)
40

Output Current
1400mA

Dimmable (Type)
No

Output Voltage Range (V)
15~29

Dimensions
175x 42x 24

EMC Standards
Compliance to EN55015, EN61000-3-2 Class C; EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547, light industry level (surge 2KV), criteria B

Input Voltage
180-295VAC

Safety Standards
UL8750, CSA C22.2 No.250. 13-12 (for PLM-40-1400 1750), ENEC EN61347-1, EN61347-2-13, EN61347-2-13, EN62384, IP30 approved

Output Voltage Options
Single

Working Temperature
-30~+40°C

PDF Datasheet
PLM-40E-spec.pdf
