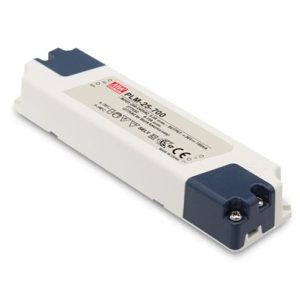

PLM-25S – Mean Well PLM-25 Series ED Driver 25W 350mA – 1050mA For Sale

Constant current designBuilt-in active PFC functionProtections: Short circuitOther features:Universal input Full range (110~295VAC)No load power consumption <0.5WCooling by free air convectionFully isolated plastic caseSmall and compact sizeClass II power unit, no FG100% full load burn-in testHigh reliability, low costSuitable for LED lighting and moving sign applications2 years warranty
More Information

Manufacturer

Mean Well

Output Wattage (W)

25

Dimmable (Type)

No

Output Voltage Range (V)

14.4~36

Dimensions

145x 38x 22

EMC Standards

Compliance to EN55015, EN61000-3-2 Class C; EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547, light industry level (surge 2KV), criteria B

Input Voltage

110~295VAC, 156~417VDC

Safety Standards

Design refer to EN61347-1, EN61347-2-13

Output Voltage Options

Single

Working Temperature

-30~+50°C

PDF Datasheet

PLM-25-spec_1.PDF
