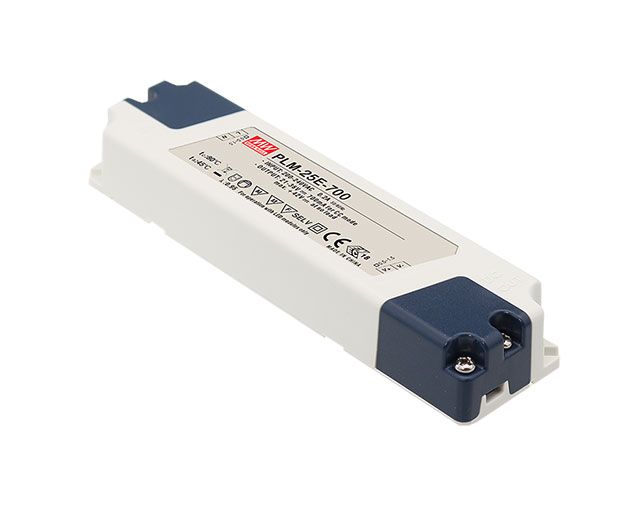

PLM-25E-700 – Mean Well LED Power Supply PLM-25E-700 25.2W 700mA Sale

Universal input Full range (180~295VAC)Built-in active PFC functionProtections: Short circuitOther features:No load power consumption <0.5WCooling by free air convectionFully isolated plastic caseSmall and compact sizeClass II power unit, no FG100% full load burn-in testHigh reliability, low costSuitable for LED lighting and moving sign applications2 years warranty
More Information

Manufacturer
Mean Well

Output Wattage (W)
25.2

Output Current
700mA

Dimmable (Type)
No

DC Output Adjustment
21-36V

Dimensions
145x 38x 22

EMC Standards
Compliance to EN55015, EN61000-3-2 Class C (>60% load);EN61000-3-3 Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level, criteria B (surge 2KV)

Input Voltage
180-295VAC

Safety Standards
ENEC EN61347-1, EN61347-2-13, EN62384, IP30 approved

Output Voltage Options
Single

Working Temperature
-30°C-+45°C

PDF Datasheet
PLM-25E-spec.pdf
