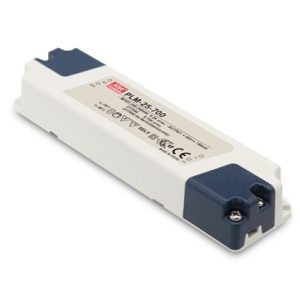

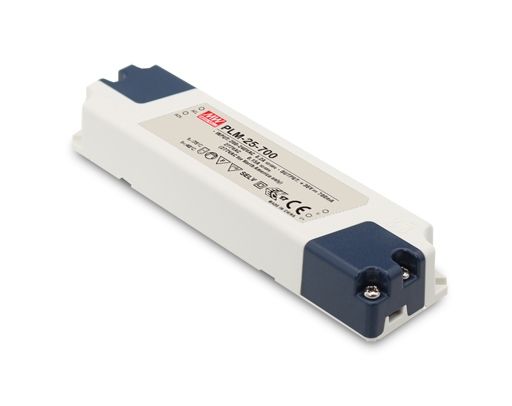

PLM-25-700 – Mean Well LED Driver PLM-25-700 25W 700mA on Sale

Constant current designBuilt-in active PFC functionProtections: Short circuitOther features:Universal input Full range (110~295VAC)No load power consumption <0.5WCooling by free air convectionFully isolated plastic caseSmall and compact sizeClass II power unit, no FG100% full load burn-in testHigh reliability, low costSuitable for LED lighting and moving sign applications2 years warranty
More Information

Manufacturer
Mean Well

Output Wattage (W)
25

Output Current
700mA

Dimmable (Type)
No

Output Voltage Range (V)
14.4~36

Dimensions
145x 38x 22

EMC Standards
Compliance to EN55015, EN61000-3-2 Class C; EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547, light industry level (surge 2KV), criteria B

Input Voltage
110~295VAC, 156~417VDC

Safety Standards
Design refer to EN61347-1, EN61347-2-13

Output Voltage Options
Single

Working Temperature
-30~+50°C

PDF Datasheet
PLM-25-spec_1.PDF
