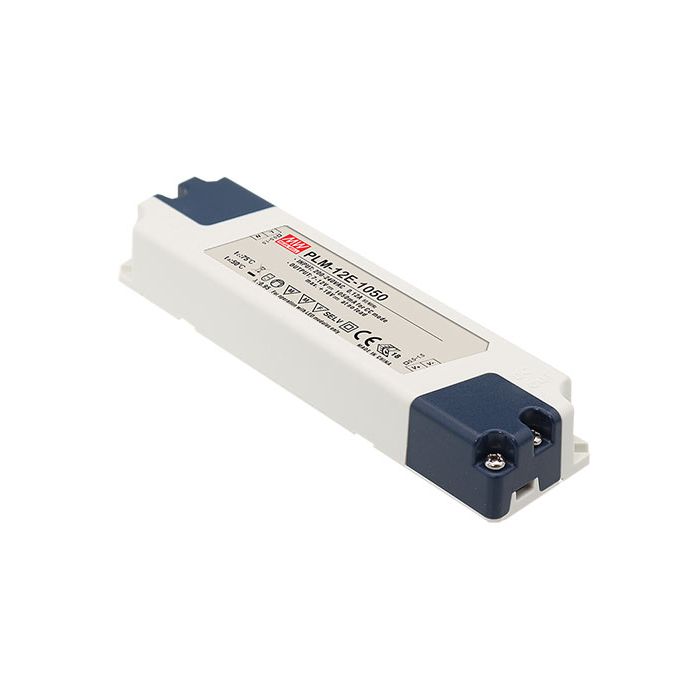

PLM-12E-1050 – Mean Well LED Driver PLM-12E-1050 12W 1050mA Online Hot Sale

Constant current designBuilt-in active PFC functionProtections: Short circuitOther features:Universal input Full range (110~295VAC)No load power consumption <0.5WCooling by free air convectionFully isolated plastic caseSmall and compact sizeClass II power unit, no FG100% full load burn-in testHigh reliability, low costSuitable for LED lighting and moving sign applications2 years warranty
More Information

Manufacturer
Mean Well

Output Wattage (W)
12.6

Output Current
1050mA

Dimmable (Type)
No

Output Voltage Range (V)
7~12

Dimensions
145 x 38 x 22mm

EMC Standards
Copliance to EN55015, EN61000-3-2 Class C(>60% load);EN61000-3-3 Compliance to EN61000-4-2,3,4,5,6,8,11;EN61547, light industry level, criteria B(surge 2kv)

Input Voltage
254-416VDC

Safety Standards
ENEC EN61347-1, EN61347-2-13, EN62384, IP30 approved

Output Voltage Options
Single

Working Temperature
-30~+50°C

PDF Datasheet
PLM-12E-spec_3.pdf
