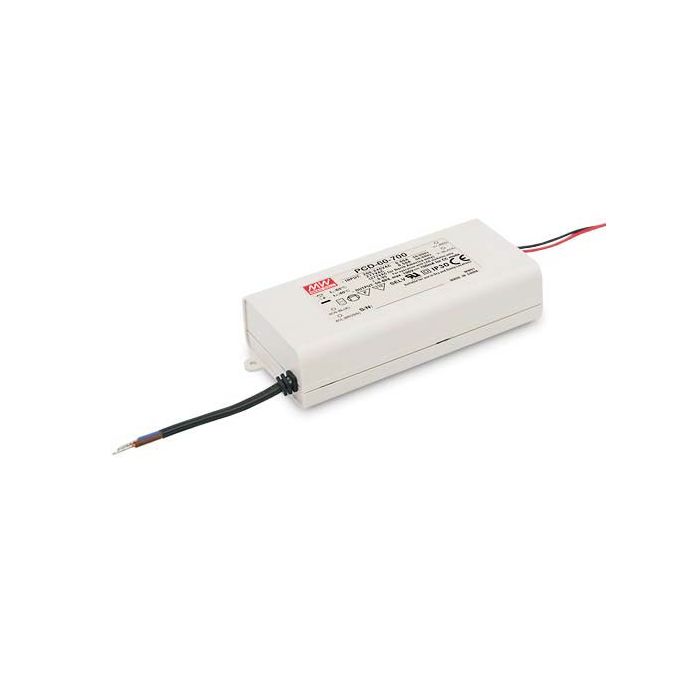

PLD-60-S – Mean Well PLD-60 Series LED Driver 60W 500mA – 2400mA Online Sale

180~295VAC inputBuilt-in active PFC functionProtections: Short circuit Over temperatureOther features:Constant current designFully isolated plastic caseIP30 designClass 2 power unit Pass LPSIsolation class II, no F.G.100% full burn-in testCooling by free air convection3 years warranty
More Information

Manufacturer

Mean Well

Output Wattage (W)

60

Output Current

Choose Option

Dimmable (Type)

No

Dimensions

128x 60x 31.5

EMC Standards

Compliance to EN55015, EN61000-3-2 Class C; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge 4KV), criteria A

Input Voltage

180~295VAC

Safety Standards

UL8750, ENEC EN61347-1, EN61347-2-13 independent, IP30 approved

Output Voltage Options

Single

Working Temperature

-30~+50°C

PDF Datasheet

PLD-60-spec_8.pdf
