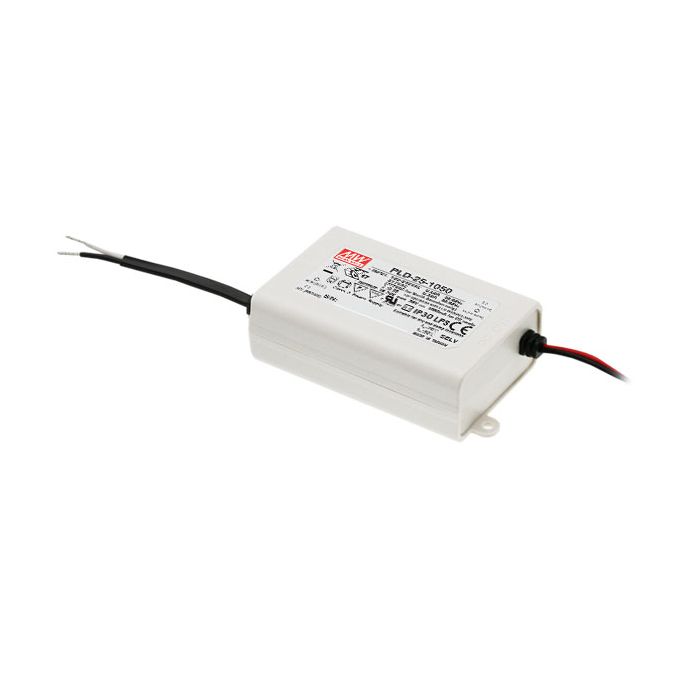

PLD-25-S – Mean Well PLD-25 Series LED Driver 20W – 25W 350mA – 1400mA Online now

Built-in active PFC functionConstant current designProtections: Short circuit Over temperatureOther features:Fully isolated plastic caseConstant current designClass 2 power unit Pass LPSIsolation class II, no F.G.Cooling by free air convection3 years warranty
More Information

Manufacturer

Mean Well

Output Wattage (W)

25

Output Current

Choose Option

Dimmable (Type)

No

EMC Standards

EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547

Input Voltage

90~295VAC 127~417VDC

Safety Standards

UL8750, ENEC EN61347-1, EN61347-2-13

Output Voltage Options

Single

Working Temperature

-30~+50°C

PDF Datasheet

PLD-25-spec.pdf
