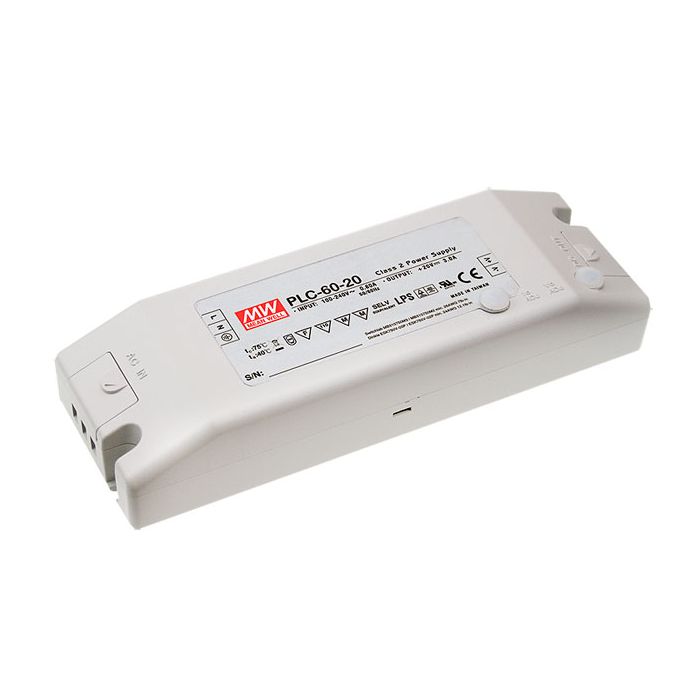

PLC-60-S – Mean Well PLC-60 Series LED Driver 60W 12V – 48V For Discount

Built-in constant current limiting circuit (C.V. + C.C. mode)Protections: Short circuit Over current Over voltage Over temperatureOther features:Universal AC input full rangeFully isolated plastic case with screw terminal style of I OAdjustable output voltage and current levelBuilt-in active PFC function, PF>0.9 for 75% of load or higherHigh efficiency up to 90%Class 2 power unit Pass LPSIsolation class II, no F.G.Cooling by free air convection100% full load burn-in test2 years warranty
More Information

Output Wattage (W)

60

Output Voltage

Choose Option

DC Output Adjustment

95%~108% rated output voltage adjustable by internal potentiometer

Dimensions

181 x 61.5 x 35

EMC Standards

EN55015, EN55022 class B, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11

Input Voltage

90~264VAC; 127~370VDC

Safety Standards

UL1310, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved

Output Voltage Options

Single

Working Temperature

-30~+50°C (Refer to Derating Curve )

PDF Datasheet

PLC-60-SPEC.PDF
