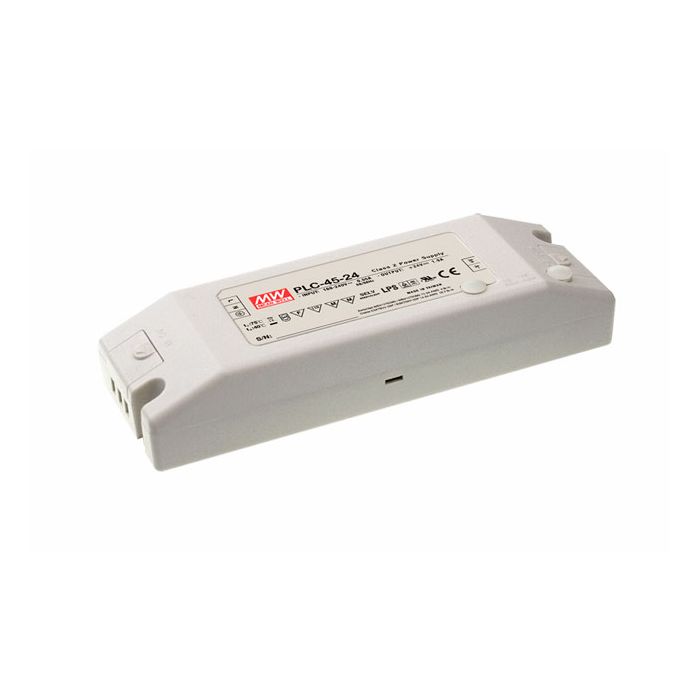

PLC-45-S – Mean Well PLC-45 Series LED Driver 45W 12V – 48V Sale

PLC-45-48 is an LED power supply with adjustable output voltage and current level and also has built-in constant current limiting circuitProtections: short circuit over load over voltage over temperatureOther features:  Universal AC input Full range, fully isolated plastic case with terminal block style of I O, built-in active PFC function, comply with EN61000-3-2 class C ( ?75% load), UL1310 class 2 power unit, cooling by free air convection, 100% full load burn-in test, high reliability, suitable for LED lighting and moving sign applications, compliance to worldwide safety regulations for lighting and pass LPS?
More Information

Output Wattage (W)

45

Output Voltage

Choose Option

DC Output Adjustment

95%~108% rated output voltage adjustable by internal potentiometer

Dimensions

181 x 61.5 x 35

EMC Standards

EN55015, EN55022 class B, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11

Input Voltage

90~264VAC; 127~370VDC

Safety Standards

UL1310, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved

Output Voltage Options

Single

Working Temperature

-30~+60°C (Refer to Derating Curve )

PDF Datasheet

PLC-45-SPEC.PDF
