PLC-45-24 – Mean Well LED Driver PLC-45-24 45W 24V Sale
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200

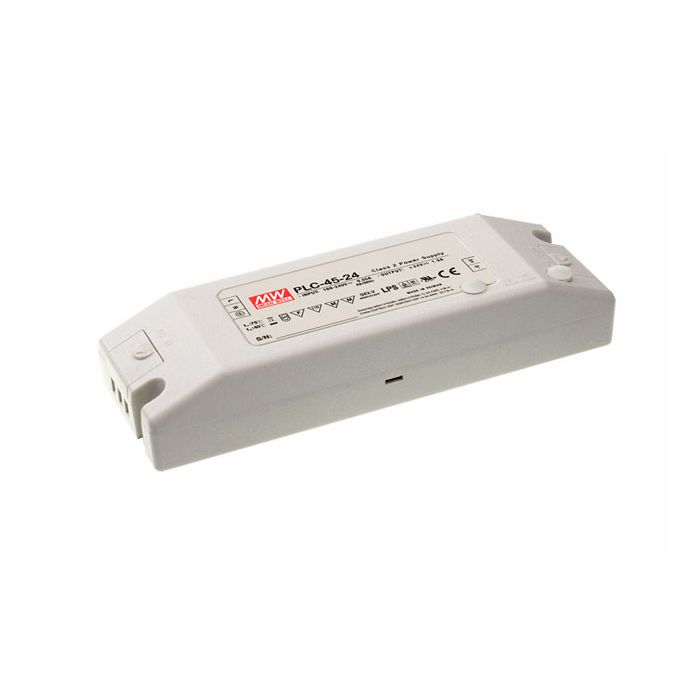

PLC-45-24 is an LED power supply with adjustable output voltage and current level and also has built-in constant current limiting circuitProtections: short circuit over load over voltage over temperatureOther features: Universal AC input Full range, fully isolated plastic case with terminal block style of I O, built-in active PFC function, comply with EN61000-3-2 class C ( ?75% load), UL1310 class 2 power unit, cooling by free air convection, 100% full load burn-in test, high reliability, suitable for LED lighting and moving sign applications, compliance to worldwide safety regulations for lighting and pass LPS?
More Information
Manufacturer
Mean Well
Output Wattage (W)
45
Output Voltage
24V
Dimmable (Type)
No
DC Output Adjustment
95%~108% rated output voltage adjustable by internal potentiometer
Dimensions
181 x 61.5 x 35
EMC Standards
EN55015, EN55022 class B, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11
Input Voltage
90~264VAC; 127~370VDC
Safety Standards
UL1310, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved
Output Voltage Options
Single
Working Temperature
-30~+50°C
PDF Datasheet
PLC-45-SPEC.PDF
