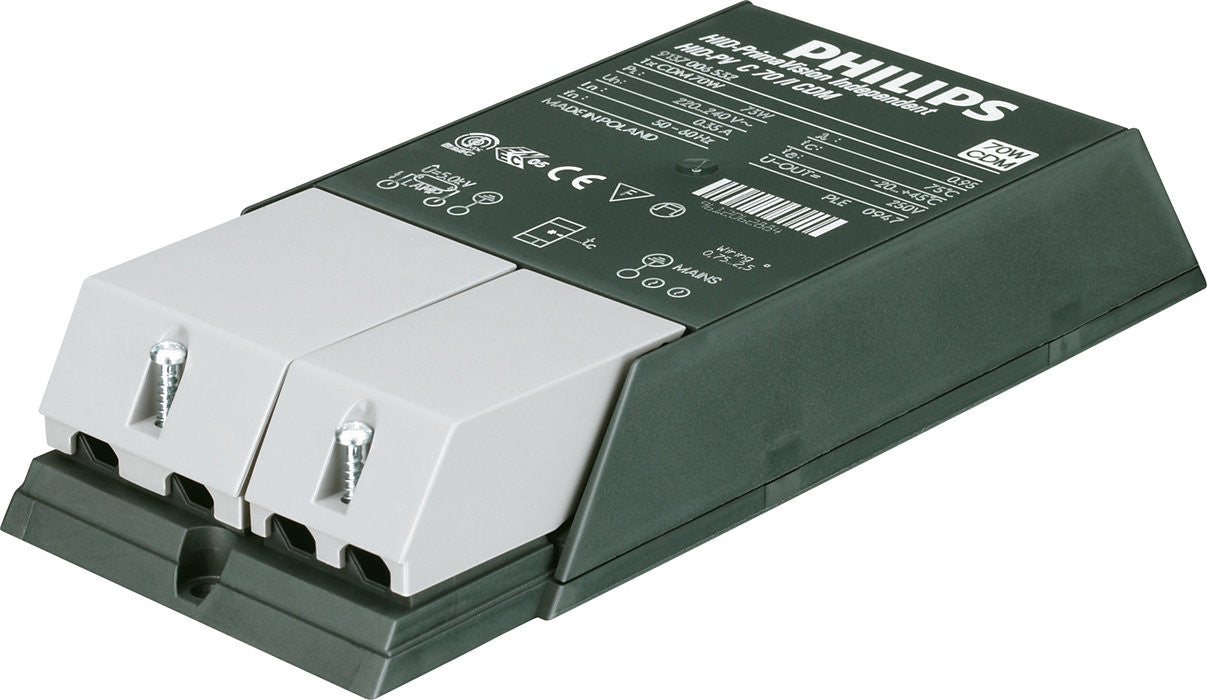

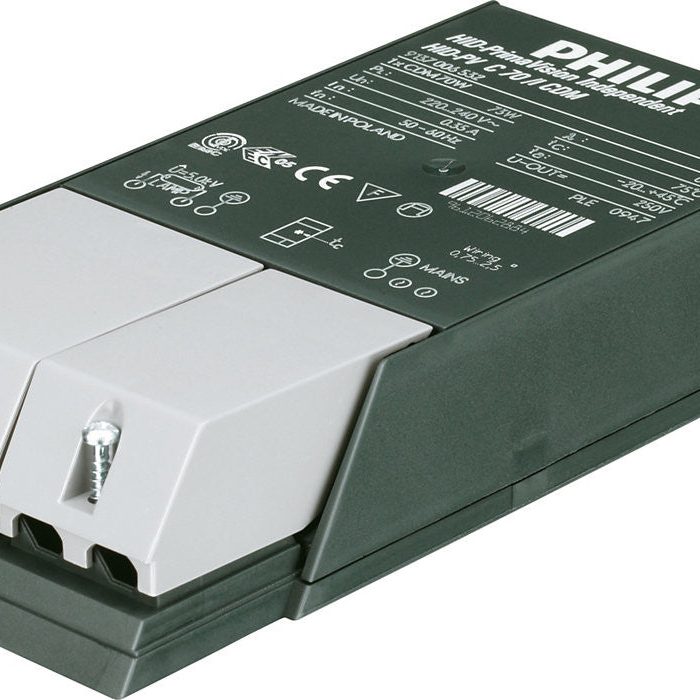

The Philips HID-PV C 70 l CDM electronic ballast comes complete with strain relief and runs 1x70w metal halide lamps.this ballast is available as independent ( I) for independent use on a (false) ceiling, minimal lamp power spread, microprocessor controlled, lamp end of life detection, long lifetime of 40,000 hours, lamp life is increased by up to 30% for CDM lamps, silent operation without hum it is also RoHS compliant. This Philips HID-PV is usually used in accent and decorative lighting for shops and retail, public spaces, lobbies and offices. This unit is designed for optimum system performance with Philips MASTERcolour CDM lamps.

Full Product Code: 872790085988100

Specifications

General Information

Remarks
UK importer address: Signify Commercial UK Limited, 3, Guildford Business Park, GU2 8XG
Type version
ng
Lamp type
CDM
Number of lamps
1 piece unit
Suitable for outdoor use
No
Number of products on MCB (16 A type B) (nom.)
20
Automatic restart
Yes
Operating and Electrical

Input Voltage
220 to 240 V
Input frequency
50 to 60 Hz
Operating frequency (nom.)
0.14 kHz
Power factor 100% load (nom.)
0.95
Ignition voltage (max.)
4.0 kV
Ignition switch-off time (nom.)
18 min
Mains voltage performance (AC)
-10%-+6%
Mains voltage safety (AC)
-18%-+10%
Earth leakage current (max.)
0.25 mA
Inrush current width
0.33 ms
Constant wattage deviation
-3% +3%
Power losses (nom.)
7.0 W
Inrush current peak (max.)
33 A
Wiring

Cable capacity output wires mutual (nom.)
150 pF
Cable length from device to lamp
2.0 m
Ballast contact wire cross section
0.50-2.50 mm²
Connector type
Insert
System characteristics

Rated ballast-lamp power
70 W

Temperature

T-ambient (max.)
45 °C
T-ambient (min.)
-20 °C
T storage (max.)
75 °C
T storage (min.)
-25 °C
T-case lifetime (nom.)
75 °C
T-Case maximum (max.)
75 °C
Mechanical and Housing

Housing
I

Approval and Application

Active temperature protection
Yes
EMI 9 kHz … 300 MHz
CISPR 15 ed 7.2
Safety standard
EN 61347-2-12
Quality standard
ISO 9000:2000
Environmental standard
ISO 14001
Harmonic current emission standard
EN 61000-3-2
EMC immunity standard
EN 61547
Vibration standard
IEC68-2-6 F c
Bumps standard
IEC 68-2-29 Eb
Humidity standard
IEC 928-13
Approval marks

CE marking

ENEC certificate
Temperature marking
F
Humming and noise level
37 dB(A)
Product Data

Full product code
872790085988100
Order product name
HID-PV C 70 I CDM 220-240V 50 60Hz NG
EAN UPC – product
8711500881717
Order code
85988100
Local order code
PVC070ICDM
SAP numerator – quantity per pack
1
Numerator – packs per outer box
12
SAP material
913700653266
SAP net weight (piece)
0.360 kg
