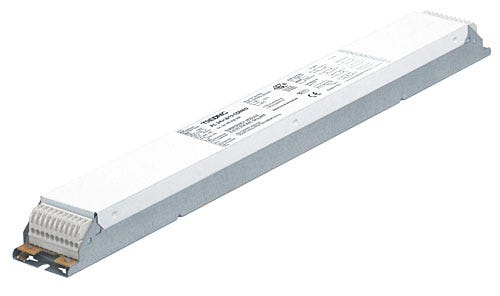

PC Emergency Module and Electronic Ballasts 2×55-5 TCL Combo (89899925) TRIDONIC
Product Details:
- Combination of electronic ballast and emergency lighting unit
-
- For compact fluorescent lamps
-
- For manual testing of the emergency lighting function
-
- 5-year guarantee
-
- Dimensions: 122mm length x 101mm width x 30mm height
-
Properties:
- Lightweight one-part emergency lighting unit
-
- Simple wiring
-
- No compatibility problems
-
- 3 h rated duration for TC-DD lamp variants
-
- 1 and 3 h rated duration for TC-D T lamp variants
-
- Selectable operating time (jumper)
-
- Lamp warm start in normal operation
-
- Filament heating in emergency operation for TC-D T lamps
-
- AC operation of all lamps
-
- Automatic restart after relamping in normal operation
-
- Green charge status display LED
-
-
Intelligent Voltage Guard (overvoltage indication and undervoltage shutdown)
-
- Optional test switch
-
-
Checking the emergency lighting function by interrupting the unswitched phase
-
- Small dimensions
-
- IDC (insulation displacement connection)
-
- Electronically controlled battery charging
-
- Deep discharge protection
-
- Short-circuit-proof battery connection
-
- Polarity reversal protection for battery
-
Batteries:
- Separate battery pack
-
- High-temperature cells
-
- NiCd or NiMH batteries
-
- D, Cs or LA cells
-
- 4-year design life
-
- 1-year guarantee
-
Further technical information can be found in Images.
