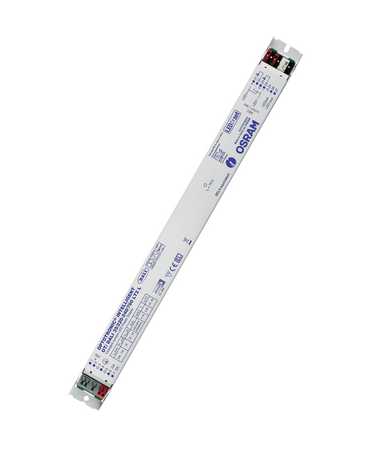

OTI DALI 35 220-240 700 LT2L VS20 OSRAM Hot on Sale

$23.96

27 people are viewing this right now
4 products sold in last 5 hours
Selling fast! Over 19 people have this in their carts
  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping & Returns : On all orders over $200
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout

Technical Data

Electrical data

Nominal input voltage

220…240 V

Mains frequency

0 50 60 Hz

Input voltage AC

198…264 V

Input voltage DC

176…276 V

Current set

DALI LEDset Programmable

Total harmonic distortion

< 15 %

Power factor λ

> 0.95

Efficiency in full-load

90 %


Device power loss

4.0 W

Networked standby power

≤ 0.17 W


Protective conductor current

<0.5 mA

Inrush current

20 A

Max. ECG no. on circuit breaker 10 A (B)

15

Max. ECG no. on circuit breaker 16 A (B)

24

Max. ECG no. on circuit breaker 25 A (B)

–

Surge capability (L N-Ground)

2 kV

Surge capability (L-N)

1 kV

Nominal output voltage

15…54 V

U-OUT (working voltage)

< 60 V

Nominal output current

200…700 mA

Output current LEDset open

100 mA

Output current LEDset shorted

700 mA

Default output current

100 mA


Output current tolerance

±3 %


Output ripple current (100 Hz)

< 1 %

Output PSTLM

≤1

Output SVM

≤0.4

Nominal output power

4…37 W

Maximum output power

37 W

Galvanic isolation

SELV

Dimensions & weight

Mounting hole spacing, length

350.0 mm

Product weight

240.00 g

Cable cross-section, input side

0.5…1.5 mm²

Cable cross-section, output side

0.5…1.5 mm²

Wire preparation length, input side

8.0…9.0 mm

Wire preparation length, output side

8.0…9.0 mm

Width

30.0 mm

Height

21.0 mm

Length

360.0 mm

Colors & materials

Casing material

Metal

Temperatures & operating conditions

Ambient temperature range

-25…+50 °C

Maximum temperature at tc test point

75 °C

Max.housing temperature in case of fault

110 °C

Temperature range at storage

-40…+85 °C

Permitted rel. humidity during operation

5…85 %


Lifespan

ECG lifetime

50000 100000 h


Additional product data

Predecessor EAN

4052899245389

Capabilities

Programming interface

DALI, LEDset

Dimmable

Yes

Dimming interface

DALI-2 Touch DIM Touch DIM Sensor

Dimming range

1…100 %

Dimming method

Amplitude Modulation

Constant lumen function

Programmable

Overheating protection

Automatic reversible

Overload protection

Non-reversible

Short-circuit protection

Automatic reversible

No-load proof

Yes

Intended for no-load operation

No

Max. cable length to lamp LED module

2.0 m

Suitable for fixtures with prot. class

I

Type of connection, input side

Push terminal

Type of connection, output side

Push terminal

Control interface

DALI

Number of channels

1

Programming

Tuner4TRONIC Field App

Yes

Programming device

DALI magic

Programmable features

Constant Lumen

Yes

Certificates & standards

Approval marks – approval

CE EL VDE-ENEC VDE-EMC EAC CCC RCM BIS

Standards

Acc. to EN 61347-1 Acc. to EN 61347-2-13 Acc. to EN 55015 Acc. to EN 61547 Acc. to EN 61000-3-2 Acc. to EN 62384 Acc. to EN 62386

Type of protection

IP20

Logistical data

Commodity code

850440829000

Packaging information

EAN

Unit

Piece

Dimension l x w x h

Weight

Volume
4052899551763

 UNV


 1

 360mm x 30mm x 21mm

 240.00g

 0.23dm³
4052899551770

 VS


 20

 385mm x 160mm x 100mm

 5146.00g

 6.16dm³
