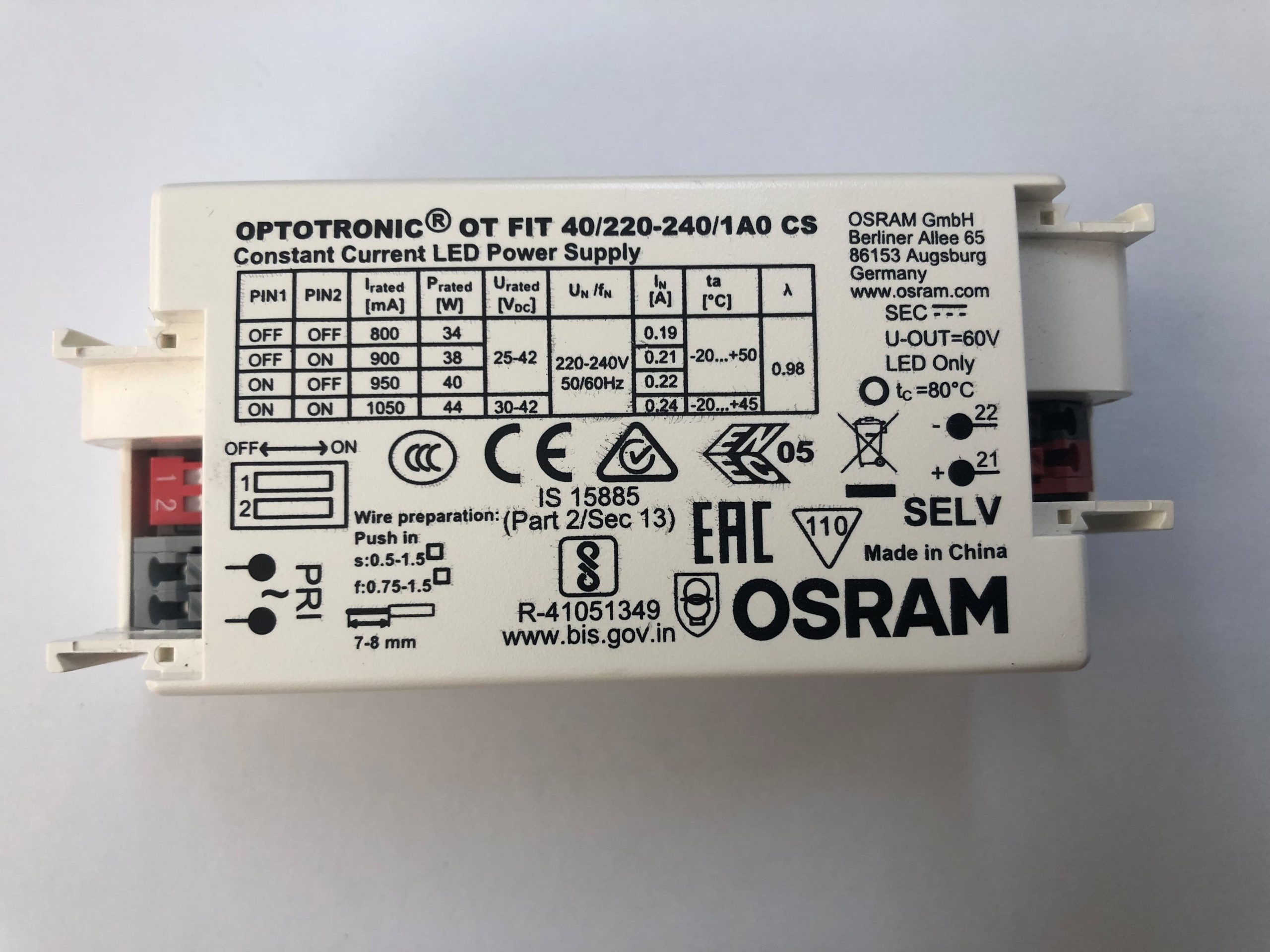

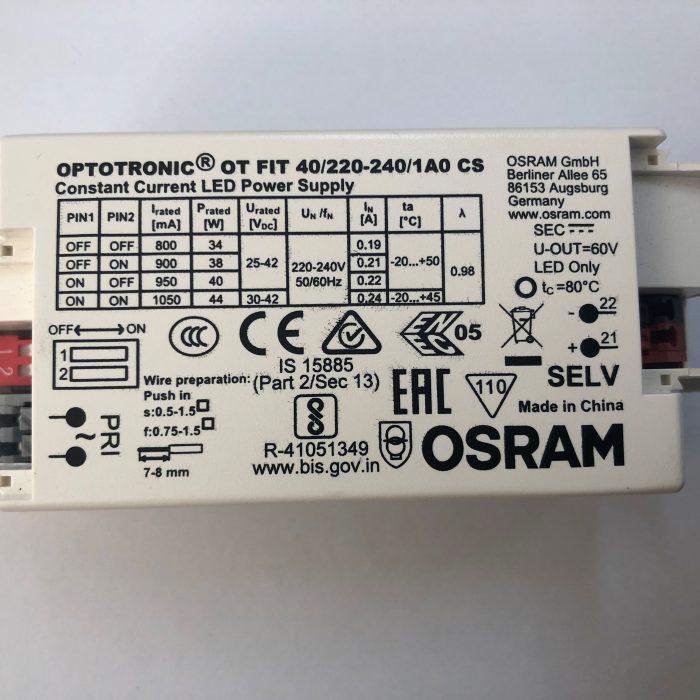

OT FIT 40 220-240 1A0 CS G2 4052899435650 Supply
22 people are viewing this right now
20 products sold in last 8 hours
Selling fast! Over 18 people have this in their carts
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
TECHNICAL DATA Electrical data Nominal voltage 220…240 V Mains frequency 50…60 Hz Input voltage AC 198…264 V Total harmonic distortion < 10 % Power factor λ 0.98 ECG efficiency 90 % 1) Device power loss 4.9 W 2) Protective conductor current <0.7 mA Inrush current < 16 A 3) Max. ECG no. on circuit breaker 10 A (B) 16 Max. ECG no. on circuit breaker 16 A (B) 25 Max. ECG no. on circuit breaker 25 A (B) – Surge capability (L N-Ground) 2 kV Surge capability (L-N) 1 kV Nominal output voltage 25…42 V U-OUT (working voltage) 60 V Nominal output current 800 900 1050 950 mA Output current tolerance ±7.5 % Output ripple current (100 Hz) < 5 % Nominal output power 20…44 W Galvanic isolation SELV
